sysaux中HEATMAP 对象较大

联系:手机/微信(+86 13429648788) QQ(107644445)QQ咨询惜分飞

标题:sysaux中HEATMAP 对象较大

作者:惜分飞©版权所有[未经本人同意,不得以任何形式转载,否则有进一步追究法律责任的权利.]

在一次数据检查中,发现HEATMAP对象比较大

SQL> select * from v$version;

BANNER                                                                               CON_ID
-------------------------------------------------------------------------------- ----------
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production              0
PL/SQL Release 12.1.0.2.0 - Production                                                    0
CORE    12.1.0.2.0      Production                                                        0
TNS for Linux: Version 12.1.0.2.0 - Production                                            0
NLSRTL Version 12.1.0.2.0 - Production                                                    0


SQL> col owner for a30
SQL> col  segment_name for a30
SQL> col segment_type for a20
set lines 150
SELECT owner, segment_name, segment_type, sum(bytes/1024/1024/1024)
FROM dba_extents
WHERE tablespace_name='SYSAUX'
and segment_name='HEATMAP'
group by owner, segment_name, segment_type;SQL> SQL>   2    3    4    5

OWNER                          SEGMENT_NAME                   SEGMENT_TYPE         SUM(BYTES/1024/1024/1024)
------------------------------ ------------------------------ -------------------- -------------------------
SYS                            HEATMAP                        SYSTEM STATISTICS                   1.58789063

检查Heat Map特性为关闭

SQL> show parameter HEAT_MAP;

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
heat_map                             string      OFF

查询mos发现相关Bug 20678613 – HEATMAP SIZE IS 500 MB, THOUGH HEAT_MAP IS TURNED OFF.通过设置_drop_stat_segment为1来自动减小HEATMAP(其默认值为0)

---默认值
SQL> col name for a52
SQL> col value for a24
SQL> col description for a50
set linesize 150
select a.ksppinm name,b.ksppstvl value,a.ksppdesc description
  from x$ksppi a,x$ksppcv b
 where a.inst_id = USERENV ('Instance')
   and b.inst_id = USERENV ('Instance')
   and a.indx = b.indx
   and upper(a.ksppinm) LIKE upper('%&param%')
SQL> SQL>   2    3    4    5    6    7  order by name
/  8
Enter value for param: _drop_stat_segment
old   6:    and upper(a.ksppinm) LIKE upper('%&param%')
new   6:    and upper(a.ksppinm) LIKE upper('%_drop_stat_segment%')

NAME                                                 VALUE                    DESCRIPTION
---------------------------------------------------- ------------------------ ----------------------------
_drop_stat_segment                                   0                        drop ilm statistics segment

---设置值
ALTER SYSTEM SET "_drop_stat_segment" =1;

如果需要也可以人工进行删除

exec dbms_space_admin.heat_map_segment_drop;

参见:HEATMAP Segment Size Is Large In SYSAUX Even When Heatmap=Off (Doc ID 2024036.1)
Bug 24704547 : SYS.HEATMAP GROWS IN SIZE IN 12C UNDER SYSAUX TBS

select default$ from col$ where rowid=:1 大量解析

联系:手机/微信(+86 13429648788) QQ(107644445)QQ咨询惜分飞

标题:select default$ from col$ where rowid=:1 大量解析

作者:惜分飞©版权所有[未经本人同意,不得以任何形式转载,否则有进一步追究法律责任的权利.]

在一个12.1.0.2的库的awr中发现大量47r1y8yn34jmj语句的解析
47r1y8yn34jmj


对应的完整sql为:select default$ from col$ where rowid=:1,按道理说正常的库不应该出现大量该类sql的解析,查询mos发现相关Bug 20907061 : HIGH # OF EXECUTIONS FOR RECURSIVE CALL ON COL$
20907061

回收站中有大量wri$_rcs表

联系:手机/微信(+86 13429648788) QQ(107644445)QQ咨询惜分飞

标题:回收站中有大量wri$_rcs表

作者:惜分飞©版权所有[未经本人同意,不得以任何形式转载,否则有进一步追究法律责任的权利.]

在对一套Oracle 12.1.0.2的数据库巡检之时发现大量WRI$_RCS_数字_1的表在回收站中,从命名中看该表应该是Oracle某个自动任务处理后,表未被正常处理干净,遗留在回收站中.
wri$_rcs


查询mos确认是Bug 20114306 – Objects left in recyclebin after upgrade to 12.1.0.2 or with fix for bug 16851194 present – superseded (文档 ID 20114306.8)
20114306

可以尝试打上补丁21498770或者23100700然后设置_fix_control

alter system set "_fix_control"='16851194:off' ;

确认该_fix_control是否可以设置,可以查询 v$system_fix_control视图

11.2.0.3 adg库因 bug 16427872 导致smon占用大量cpu

检查数据库发现客户有一套核心的ADG库smon进程负载异常,单进程一直持有cpu 100%

[oracle@q9adg01 trace]$ top -c
top - 14:00:14 up 83 days, 21:39,  4 users,  load average: 10.34, 11.55, 11.25
Tasks: 1162 total,   3 running, 1157 sleeping,   0 stopped,   2 zombie
Cpu(s):  1.7%us,  1.2%sy,  0.0%ni, 86.2%id, 10.7%wa,  0.0%hi,  0.1%si,  0.0%st
Mem:  264253752k total, 200445076k used, 63808676k free,   757684k buffers
Swap: 33554424k total,        0k used, 33554424k free,  6529220k cached

  PID USER      PR  NI  VIRT  RES  SHR S %CPU %MEM    TIME+  COMMAND
 5707 oracle    25   0  150g  20m  16m R 99.9  0.0  14273:00 ora_smon_q9db1
 5285 oracle    16   0 13564 1952  820 R 31.5  0.0   0:02.49 top -c
 5713 oracle    18   0  150g  20m  17m S  5.3  0.0 410:01.33 ora_asmb_q9db1
 5821 oracle    15   0  150g  23m  17m S  5.3  0.0   4883:29 ora_lck0_q9db1
 7596 oracle    15   0  150g  69m  37m S  5.3  0.0   5368:28 ora_pr00_q9db1


[oracle@q9adg02 ~]$ top -c
top - 14:00:03 up 84 days, 19:36,  3 users,  load average: 6.46, 6.96, 6.76
Tasks: 1045 total,   5 running, 1040 sleeping,   0 stopped,   0 zombie
Cpu(s):  1.8%us,  1.0%sy,  0.0%ni, 93.4%id,  3.7%wa,  0.0%hi,  0.1%si,  0.0%st
Mem:  264253752k total, 196879216k used, 67374536k free,   425320k buffers
Swap: 33554424k total,        0k used, 33554424k free,  4727836k cached

  PID USER      PR  NI  VIRT  RES  SHR S %CPU %MEM    TIME+  COMMAND
11615 oracle    25   0  150g  16m  14m R 100.0  0.0  14272:55 ora_smon_q9db2
18173 oracle    16   0  150g  73m  37m D 18.6  0.0  24:33.91 oracleq9db2 (LOCAL=NO)
 6561 oracle    15   0  150g  31m  25m R 12.2  0.0   0:48.50 oracleq9db2 (LOCAL=NO)

数据库版本和patch信息

14:18:05 sys@Q9DB>select * from v$version;

BANNER
--------------------------------------------------------------------------------
Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production
PL/SQL Release 11.2.0.3.0 - Production
CORE    11.2.0.3.0      Production
TNS for Linux: Version 11.2.0.3.0 - Production
NLSRTL Version 11.2.0.3.0 - Production


SQL>  SELECT INST_ID,DATABASE_ROLE,OPEN_MODE FROM GV$DATABASE;

   INST_ID DATABASE_ROLE    OPEN_MODE
---------- ---------------- --------------------
         2 PHYSICAL STANDBY READ ONLY WITH APPLY
         1 PHYSICAL STANDBY READ ONLY WITH APPLY

SQL >select inst_id,STARTUP_TIME from gv$instance;

   INST_ID STARTUP_T
---------- ---------
         2 01-NOV-13
         1 01-NOV-13

[oracle@q9adg01 trace]$ /u01/app/oracle/product/11.2.0/db_1/OPatch/opatch  lspatches
16056266;Database Patch Set Update : 11.2.0.3.6 (16056266)
16315641;Grid Infrastructure Patch Set Update : 11.2.0.3.6 (16083653)

SYSAUX表空间增加数据文件

SQL> select ts# from v$tablespace where name='SYSAUX';

       TS#
----------
         2

SQL> select file#,name,creation_time from v$datafile where ts#=2;

     FILE# NAME                                               CREATION_
---------- -------------------------------------------------- ---------
         3 +DATA/q9db/datafile/sysaux.1412.818566605          12-MAR-08
       151 +DATA/q9db/datafile/sysaux.1431.818566885          26-MAR-12
       221 +DATA/q9db/datafile/sysaux.828.818547945           16-APR-12
      1744 +DATA/q9db_adg/datafile/sysaux.2050.835459505      29-DEC-13

核对数据库确实在2013年12月29日对SYSAUX表空间增加了数据文件而且未重启数据库,触发Bug 16427872 Standby SMON spins on CPU after add/drop SYSAUX datafile on primary

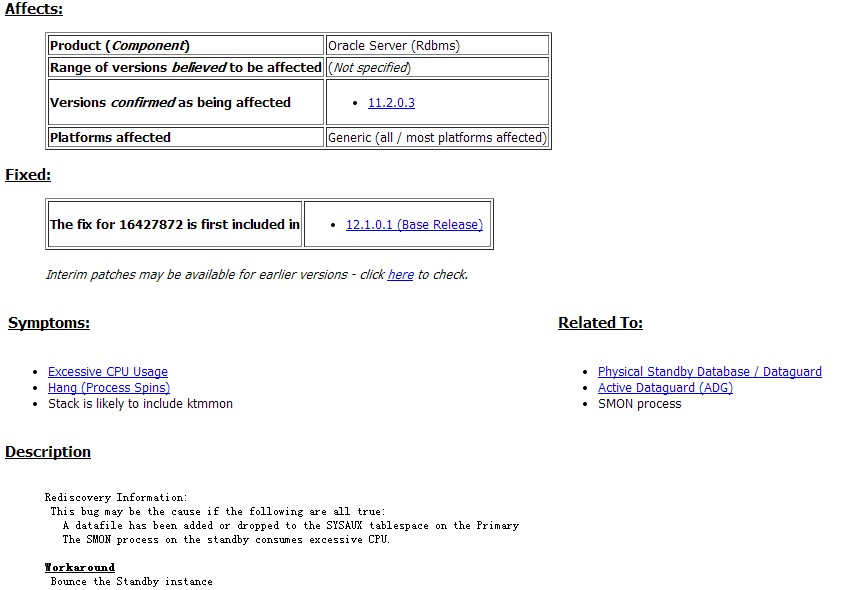

bug-16427872
Bug 16427872 Standby SMON spins on CPU after add/drop SYSAUX datafile on primary
在12.1.0.1中修复,在未修复前增加/删除sysaux的数据文件后,通过重启实例来解决该问题
