执行计划改变导致数据库负载过高

核心生产库突然负载飙升,我的压力来了,通过分析是一条sql的执行计划改变引起该故障,最终通过sql profile固定执行计划解决该问题
数据库主机负载
这里明显表现系统load 偏高,而且还在上升中;top的进程中,占用cpu都计划100%

top - 16:25:39 up 123 days,  1:42,  4 users,  load average: 46.19, 45.08, 43.93
Tasks: 1469 total,  28 running, 1439 sleeping,   0 stopped,   2 zombie
Cpu(s): 45.9%us,  1.1%sy,  0.0%ni, 47.1%id,  5.2%wa,  0.1%hi,  0.6%si,  0.0%st
Mem:  264253752k total, 262605260k used,  1648492k free,   413408k buffers
Swap: 33554424k total,   458684k used, 33095740k free, 67110504k cached

  PID USER      PR  NI  VIRT  RES  SHR S %CPU %MEM    TIME+  COMMAND
 2622 oracle    18   0  150g  34m  28m R 100.0  0.0  11:58.21 oracleq9db1 (LOCAL=NO)
15881 oracle    21   0  150g  35m  28m R 100.0  0.0  72:14.20 oracleq9db1 (LOCAL=NO)
17214 oracle    19   0  150g  38m  32m R 100.0  0.0  20:47.44 oracleq9db1 (LOCAL=NO)
17705 oracle    21   0  150g  34m  28m R 100.0  0.0  27:33.00 oracleq9db1 (LOCAL=NO)
 6110 oracle    19   0  150g  34m  28m R 99.8  0.0  12:33.34 oracleq9db1 (LOCAL=NO)
 6876 oracle    19   0  150g  34m  27m R 99.5  0.0  12:43.90 oracleq9db1 (LOCAL=NO)
17205 oracle    23   0  150g  34m  27m R 99.5  0.0  21:37.18 oracleq9db1 (LOCAL=NO)
24629 oracle    20   0  150g  35m  29m R 99.5  0.0  28:10.62 oracleq9db1 (LOCAL=NO)
26959 oracle    19   0  150g  34m  27m R 99.5  0.0  47:17.87 oracleq9db1 (LOCAL=NO)
 7655 oracle    18   0  150g  30m  25m R 98.5  0.0   2:28.45 oracleq9db1 (LOCAL=NO)
16377 oracle    18   0  150g  34m  28m R 98.5  0.0  36:07.11 oracleq9db1 (LOCAL=NO)
24637 oracle    18   0  150g  37m  30m R 98.2  0.0  26:39.15 oracleq9db1 (LOCAL=NO)
 6106 oracle    21   0  150g  40m  33m R 97.2  0.0  11:37.75 oracleq9db1 (LOCAL=NO)
28785 oracle    18   0  150g  34m  28m R 96.9  0.0  24:03.29 oracleq9db1 (LOCAL=NO)
24278 oracle    17   0  150g  31m  26m S 96.5  0.0   3:15.51 oracleq9db1 (LOCAL=NO)
24283 oracle    17   0  150g  33m  28m S 96.5  0.0   6:25.26 oracleq9db1 (LOCAL=NO)
 7098 oracle    18   0  150g  32m  27m R 94.6  0.0   2:20.22 oracleq9db1 (LOCAL=NO)
 6874 oracle    17   0  150g  34m  28m R 87.0  0.0  12:02.92 oracleq9db1 (LOCAL=NO)
18206 oracle    16   0  150g  34m  27m R 86.1  0.0  16:11.28 oracleq9db1 (LOCAL=NO)
 7096 oracle    17   0  150g  29m  24m R 85.4  0.0   3:01.72 oracleq9db1 (LOCAL=NO)

数据库等待事件

       SID EVENT
---------- ----------------------------------------------------------------
       183 gc cr request
       185 latch: cache buffers chains
       239 db file sequential read
       292 gc cr request
       406 gc cr request
       410 db file sequential read
       463 gc current request
       572 gc buffer busy acquire
       575 gc buffer busy acquire
       577 latch: cache buffers chains
       629 db file sequential read
       747 gc cr request
       919 latch: cache buffers chains
       974 gc cr request
      1033 log file sync
      1141 db file parallel write
      1153 gc cr request
      1199 db file sequential read
      1378 db file sequential read
      1495 gc cr request
      1540 db file parallel write
      1547 gc buffer busy acquire
      1662 gc cr request
      1715 gc buffer busy acquire
      1770 SQL*Net message to client
      1830 latch: cache buffers chains
      1884 gc cr request
      2113 db file sequential read
      2173 db file sequential read
      2229 rdbms ipc reply
      2292 db file sequential read
      2341 db file sequential read
      2348 gc cr request
      2460 gc cr request
      2632 gc cr request
      2684 gc cr request
      2687 db file sequential read
      2749 db file sequential read
      2913 gc cr request
      2967 db file sequential read
      3038 gc cr request
      3087 SQL*Net message to client
      3089 gc cr request
      3194 db file sequential read
      3195 db file sequential read
      3309 latch: cache buffers chains
      3371 gc cr request
      3485 gc cr request
      3535 gc cr request

可以这里有很多gc cr request等待和cache buffers chains等待,第一反应就是很可能系统某条sql执行计划不正确导致逻辑读剧增.

分析awr报告

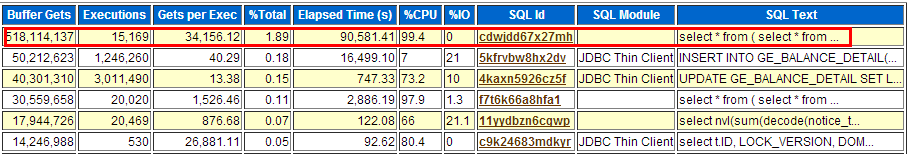

故障时候的逻辑读 top sql可以看出来cdwjdd67x27mh的sql逻辑读异常大
awr1

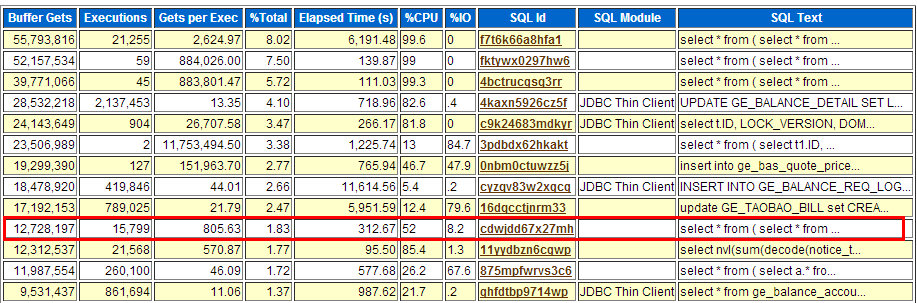

分析正常时间点awr报告中cdwjdd67x27mh逻辑读情况
awr2
通过对比可以发现两个awr中,cdwjdd67x27mh 语句执行次数差不多,但是单次逻辑读从800多突变为34000多,增加了40多倍

cdwjdd67x27mh 语句分析
执行计划

17:36:08 sys@Q9DB>select * from table(dbms_xplan.display_awr('cdwjdd67x27mh'));

PLAN_TABLE_OUTPUT
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
SQL_ID cdwjdd67x27mh
--------------------
select * from ( select          *                               from                            GE_TAOBAO_BILL           o
                 WHERE 1=1                       and
o.CREATED_TIME >= :1            and o.CREATED_TIME < :2
                                and o.REC_SITE_ID = :3
             and o.STATUS_ID = :4
             and o.SERVICE_TYPE = :5 ) where rownum
<= 36000

Plan hash value: 647855111

----------------------------------------------------------------------------------------------------------------------------------
| Id  | Operation                            | Name                      | Rows  | Bytes | Cost (%CPU)| Time     | Pstart| Pstop |
----------------------------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT                     |                           |       |       |     5 (100)|          |        |
|   1 |  COUNT STOPKEY                       |                           |       |       |            |          |        |
|   2 |   FILTER                             |                           |       |       |            |          |        |
|   3 |    PARTITION RANGE ITERATOR          |                           |     1 |   455 |     5   (0)| 00:00:01 |   KEY |   KEY |
|   4 |     TABLE ACCESS BY LOCAL INDEX ROWID| GE_TAOBAO_BILL            |     1 |   455 |     5   (0)| 00:00:01 |   KEY |   KEY |
|   5 |      INDEX RANGE SCAN                | IDX_TAOBAO_BILL_CR_ISDP_S |     1 |       |     4   (0)| 00:00:01 |   KEY |   KEY |
----------------------------------------------------------------------------------------------------------------------------------

SQL_ID cdwjdd67x27mh
--------------------
select * from ( select          *                               from                            GE_TAOBAO_BILL           o
                 WHERE 1=1                       and
o.CREATED_TIME >= :1            and o.CREATED_TIME < :2
                                and o.REC_SITE_ID = :3
             and o.STATUS_ID = :4
             and o.SERVICE_TYPE = :5 ) where rownum
<= 36000

Plan hash value: 2979024279

---------------------------------------------------------------------------------------------------------------------------------
| Id  | Operation                            | Name                     | Rows  | Bytes | Cost (%CPU)| Time     | Pstart| Pstop |
---------------------------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT                     |                          |       |       |    13 (100)|          |       ||
|   1 |  COUNT STOPKEY                       |                          |       |       |            |          |       ||
|   2 |   FILTER                             |                          |       |       |            |          |       ||
|   3 |    PARTITION RANGE ITERATOR          |                          |     1 |   455 |    13   (0)| 00:00:01 |   KEY |   KEY |
|   4 |     TABLE ACCESS BY LOCAL INDEX ROWID| GE_TAOBAO_BILL           |     1 |   455 |    13   (0)| 00:00:01 |   KEY |   KEY |
|   5 |      INDEX RANGE SCAN                | IDX_TAOBAO_BILL_CR_REC_S |     4 |       |     9   (0)| 00:00:01 |   KEY |   KEY |
---------------------------------------------------------------------------------------------------------------------------------

这里可以发现cdwjdd67x27mh在数据库中有两个执行计划

通过awr数据,看执行计划的变化情况

10:50:29 sys@Q9DB>select a.INSTANCE_NUMBER,a.snap_id,a.sql_id,a.plan_hash_value,b.begin_interval_time
10:50:30   2  from dba_hist_sqlstat a, dba_hist_snapshot b
10:50:30   3  where sql_id ='cdwjdd67x27mh'
10:50:30   4  and a.snap_id = b.snap_id
10:50:30   5  order by instance_number,begin_interval_time  desc;

INSTANCE_NUMBER    SNAP_ID SQL_ID        PLAN_HASH_VALUE BEGIN_INTERVAL_TIME
--------------- ---------- ------------- --------------- ----------------------------------------
              1      20719 cdwjdd67x27mh      2979024279 12-MAY-14 05.00.12.753 PM
              1      20719 cdwjdd67x27mh       647855111 12-MAY-14 05.00.12.753 PM
              1      20719 cdwjdd67x27mh      2979024279 12-MAY-14 05.00.12.702 PM
              1      20719 cdwjdd67x27mh       647855111 12-MAY-14 05.00.12.702 PM
              1      20718 cdwjdd67x27mh       647855111 12-MAY-14 04.00.24.197 PM
              1      20718 cdwjdd67x27mh      2979024279 12-MAY-14 04.00.24.197 PM
              1      20718 cdwjdd67x27mh       647855111 12-MAY-14 04.00.24.172 PM
              1      20718 cdwjdd67x27mh      2979024279 12-MAY-14 04.00.24.172 PM
              1      20717 cdwjdd67x27mh       647855111 12-MAY-14 03.11.22.251 PM
              1      20717 cdwjdd67x27mh      2979024279 12-MAY-14 03.11.22.251 PM
              1      20717 cdwjdd67x27mh       647855111 12-MAY-14 03.11.22.188 PM
              1      20717 cdwjdd67x27mh      2979024279 12-MAY-14 03.11.22.188 PM
              ………………
              1      20696 cdwjdd67x27mh      2979024279 11-MAY-14 07.00.07.142 PM
              1      20696 cdwjdd67x27mh      2979024279 11-MAY-14 07.00.07.105 PM
              1      20695 cdwjdd67x27mh      2979024279 11-MAY-14 06.00.12.771 PM
              1      20695 cdwjdd67x27mh      2979024279 11-MAY-14 06.00.12.707 PM
              1      20694 cdwjdd67x27mh      2979024279 11-MAY-14 05.00.48.249 PM
              1      20694 cdwjdd67x27mh      2979024279 11-MAY-14 05.00.48.170 PM
              1      20693 cdwjdd67x27mh      2979024279 11-MAY-14 04.00.37.841 PM
              …………
              2      20719 cdwjdd67x27mh      2979024279 12-MAY-14 05.00.12.753 PM
              2      20719 cdwjdd67x27mh      2979024279 12-MAY-14 05.00.12.702 PM
              2      20718 cdwjdd67x27mh      2979024279 12-MAY-14 04.00.24.197 PM
              2      20718 cdwjdd67x27mh      2979024279 12-MAY-14 04.00.24.172 PM
              2      20717 cdwjdd67x27mh      2979024279 12-MAY-14 03.11.22.251 PM
              2      20717 cdwjdd67x27mh      2979024279 12-MAY-14 03.11.22.188 PM

这里可以清晰看到,执行计划在1节点中发生震荡(两个执行计划都有选择),仔细看两个执行计划,会发现就是查询的时候所使用的index不同而已,继续分析两个index

IDX_TAOBAO_BILL_CR_ISDP_S      CREATED_TIME                            1
IDX_TAOBAO_BILL_CR_ISDP_S      IS_DISPART                              2
IDX_TAOBAO_BILL_CR_ISDP_S      STATUS_ID                               3

IDX_TAOBAO_BILL_CR_REC_S       REC_SITE_ID                             1
IDX_TAOBAO_BILL_CR_REC_S       CREATED_TIME                            2
IDX_TAOBAO_BILL_CR_REC_S       STATUS_ID                               3

分析数据分布情况(其他列省略)

TABLE_NAME                     COLUMN_NAME                    NUM_DISTINCT LAST_ANAL
------------------------------ ------------------------------ ------------ ---------
GE_TAOBAO_BILL                 CREATED_TIME                      287080448 05-MAY-14
GE_TAOBAO_BILL                 REC_SITE_ID                           13176 05-MAY-14
GE_TAOBAO_BILL                 IS_DISPART                                2 05-MAY-14
GE_TAOBAO_BILL                 STATUS_ID                                 7 05-MAY-14

这里可以看到数据库在正常的时候使用IDX_TAOBAO_BILL_CR_REC_S没有问题,但是在某些情况下选择使用IDX_TAOBAO_BILL_CR_ISDP_S这个就有问题,导致逻辑读过高,其实对于该sql语句,是因为IDX_TAOBAO_BILL_CR_REC_S 索引不合理导致,如果创建CREATED_TIME,REC_SITE_ID,STATUS_ID,就不会因为传输的值范围不同而使用IDX_TAOBAO_BILL_CR_ISDP_S的情况。针对该情况,因为表非常大,短时间内无法修改index,只能考虑使用 sql profile固定执行计划

sql profile固定计划

SQL>@coe_xfr_sql_profile.sql cdwjdd67x27mh

Parameter 1:
SQL_ID (required)



PLAN_HASH_VALUE AVG_ET_SECS
--------------- -----------
     2979024279        .011
      647855111       5.164

Parameter 2:
PLAN_HASH_VALUE (required)

Enter value for 2: 2979024279

Values passed:
~~~~~~~~~~~~~
SQL_ID         : "cdwjdd67x27mh"
PLAN_HASH_VALUE: "2979024279"


Execute coe_xfr_sql_profile_cdwjdd67x27mh_2979024279.sql
on TARGET system in order to create a custom SQL Profile
with plan 2979024279 linked to adjusted sql_text.


COE_XFR_SQL_PROFILE completed.
SQL>@coe_xfr_sql_profile_cdwjdd67x27mh_2979024279.sql
SQL>DECLARE
  2  sql_txt CLOB;
  3  h       SYS.SQLPROF_ATTR;
  4  BEGIN
  5  sql_txt := q'[
  6  select * from ( select
  7                  *
  8
  9                  from
 10
 11                  GE_TAOBAO_BILL
 12
 13                  o
 14
 15                   WHERE 1=1
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27                                  and o.CREATED_TIME >= :1
 28
 29
 30                                  and o.CREATED_TIME < :2
 31
 32
 33                                  and o.REC_SITE_ID = :3
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49                                  and o.STATUS_ID = :4
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64                                  and o.SERVICE_TYPE = :5 ) where rownum <= 36000
 65  ]';
 66  h := SYS.SQLPROF_ATTR(
 67  q'[BEGIN_OUTLINE_DATA]',
 68  q'[IGNORE_OPTIM_EMBEDDED_HINTS]',
 69  q'[OPTIMIZER_FEATURES_ENABLE('11.2.0.3')]',
 70  q'[DB_VERSION('11.2.0.3')]',
 71  q'[FIRST_ROWS]',
 72  q'[OUTLINE_LEAF(@"SEL$F5BB74E1")]',
 73  q'[MERGE(@"SEL$2")]',
 74  q'[OUTLINE(@"SEL$1")]',
 75  q'[OUTLINE(@"SEL$2")]',
 76  q'[INDEX_RS_ASC(@"SEL$F5BB74E1" "O"@"SEL$2" ("GE_TAOBAO_BILL"."REC_SITE_ID" "GE_TAOBAO_BILL"."CREATED_TIME" "GE_TAOBAO_BILL"."STATUS_ID"))]',
 77  q'[END_OUTLINE_DATA]');
 78  :signature := DBMS_SQLTUNE.SQLTEXT_TO_SIGNATURE(sql_txt);
 79  DBMS_SQLTUNE.IMPORT_SQL_PROFILE (
 80  sql_text    => sql_txt,
 81  profile     => h,
 82  name        => 'coe_cdwjdd67x27mh_2979024279',
 83  description => 'coe cdwjdd67x27mh 2979024279 '||:signature||'',
 84  category    => 'DEFAULT',
 85  validate    => TRUE,
 86  replace     => TRUE,
 87  force_match => FALSE /* TRUE:FORCE (match even when different literals in SQL). FALSE:EXACT (similar to CURSOR_SHARING) */ );
 88  END;
 89  /

PL/SQL procedure successfully completed.

SQL>WHENEVER SQLERROR CONTINUE
SQL>SET ECHO OFF;

            SIGNATURE
---------------------
 18414135509058398362


... manual custom SQL Profile has been created


COE_XFR_SQL_PROFILE_cdwjdd67x27mh_2979024279 completed

固定执行计划后,系统负载恢复正常
load恢复正常,单个进程占用cpu 也正常

top - 18:25:29 up 123 days,  4:25,  3 users,  load average: 17.59, 16.72, 16.10
Tasks: 1559 total,   6 running, 1551 sleeping,   0 stopped,   2 zombie
Cpu(s):  6.2%us,  1.2%sy,  0.0%ni, 84.3%id,  7.4%wa,  0.1%hi,  0.9%si,  0.0%st
Mem:  264253752k total, 262395300k used,  1858452k free,   305928k buffers
Swap: 33554424k total,   467420k used, 33087004k free, 66811412k cached

  PID USER      PR  NI  VIRT  RES  SHR S %CPU %MEM    TIME+  COMMAND
 3010 oracle    15   0  150g  26m  21m S 23.6  0.0   0:08.60 oracleq9db2 (LOCAL=NO)
26936 oracle    15   0  150g  33m  28m S 22.9  0.0   0:12.53 oracleq9db2 (LOCAL=NO)
 9691 oracle    15   0  150g  34m  28m D 21.0  0.0   0:48.73 oracleq9db2 (LOCAL=NO)
 9694 oracle    15   0  150g  34m  28m S 17.4  0.0   0:45.74 oracleq9db2 (LOCAL=NO)
14366 oracle    15   0  150g  33m  28m R 17.4  0.0   0:25.11 oracleq9db2 (LOCAL=NO)
 2471 oracle    -2   0  150g 180m  37m S 16.7  0.1  10795:55 ora_lms3_q9db2
 2463 oracle    -2   0  150g 180m  37m S 15.7  0.1  10648:38 ora_lms1_q9db2
 2459 oracle    -2   0  150g 180m  37m S 14.8  0.1  10726:42 ora_lms0_q9db2
 2467 oracle    -2   0  150g 180m  36m S 14.8  0.1  10980:33 ora_lms2_q9db2
13324 oracle    15   0  150g  31m  26m S 14.1  0.0   0:22.75 oracleq9db2 (LOCAL=NO)
16740 oracle    15   0  150g  34m  28m R 13.4  0.0   0:43.85 oracleq9db2 (LOCAL=NO)
 1908 oracle    15   0  150g  27m  22m S 11.8  0.0   0:03.95 oracleq9db2 (LOCAL=NO)
 9689 oracle    15   0  150g  33m  27m S 11.8  0.0   0:46.01 oracleq9db2 (LOCAL=NO)
19410 oracle    15   0  150g  31m  26m S 11.8  0.0   0:43.18 oracleq9db2 (LOCAL=NO)
14102 oracle    15   0  150g  31m  25m S 11.5  0.0   2:17.23 oracleq9db2 (LOCAL=NO)
 1914 oracle    15   0  150g  29m  24m S 11.1  0.0   0:04.77 oracleq9db2 (LOCAL=NO)
31106 oracle    15   0  150g  34m  28m S  9.8  0.0   1:24.85 oracleq9db2 (LOCAL=NO)
31139 oracle    15   0  150g  30m  24m S  9.8  0.0   1:21.75 oracleq9db2 (LOCAL=NO)
 2498 oracle    15   0  150g  42m  35m S  7.9  0.0   3838:43 ora_lgwr_q9db2
28108 oracle    15   0  150g  36m  29m S  7.9  0.0   0:18.19 oracleq9db2 (LOCAL=NO)
 2392 oracle    15   0  150g  35m  17m S  7.5  0.0   5304:57 ora_lmd0_q9db2

含is null sql语句优化

原sql语句与执行计划

SQL> set autot trace
SQL> WITH AL AS (SELECT * FROM XIFENFEI_LOG WHERE CLEAR_TIME IS NULL)
   2 SELECT SWP.ID SWP_ID, AL.* FROM AL FULL OUTER JOIN XIFENFEI_LOG_SWAP SWP ON SWP.ID = AL.ID;

54 rows selected.


Execution Plan
----------------------------------------------------------
Plan hash value: 888046630

----------------------------------------------------------------------------------------------------------
| Id  | Operation                  | Name                        | Rows  | Bytes | Cost (%CPU)| Time     |
----------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT           |                             |    24 | 11064 | 24658   (2)| 00:04:56 |
|   1 |  TEMP TABLE TRANSFORMATION |                             |       |       |            |     |
|   2 |   LOAD AS SELECT           |                             |       |       |            |     |
|*  3 |    TABLE ACCESS FULL       | XIFENFEI_LOG                |    23 |  2576 | 24652   (2)| 00:04:56 |
|   4 |   VIEW                     |                             |    24 | 11064 |     6  (17)| 00:00:01 |
|   5 |    UNION-ALL               |                             |       |       |            |     |
|   6 |     NESTED LOOPS OUTER     |                             |    23 | 10465 |     2   (0)| 00:00:01 |
|   7 |      VIEW                  |                             |    23 | 10304 |     2   (0)| 00:00:01 |
|   8 |       TABLE ACCESS FULL    | SYS_TEMP_0FD9D6605_51B4E691 |    23 |  2576 |     2   (0)| 00:00:01 |
|*  9 |      INDEX UNIQUE SCAN     | XIFENFEI_LOG_SWP_PK         |     1 |     7 |     0   (0)| 00:00:01 |
|* 10 |     HASH JOIN ANTI         |                             |     1 |    20 |     4  (25)| 00:00:01 |
|  11 |      INDEX FULL SCAN       | XIFENFEI_LOG_SWP_PK         |    20 |   140 |     1   (0)| 00:00:01 |
|  12 |      VIEW                  |                             |    23 |   299 |     2   (0)| 00:00:01 |
|  13 |       TABLE ACCESS FULL    | SYS_TEMP_0FD9D6605_51B4E691 |    23 |  2576 |     2   (0)| 00:00:01 |
----------------------------------------------------------------------------------------------------------


Predicate Information (identified by operation id):
---------------------------------------------------

   3 - filter("CLEAR_TIME" IS NULL)
   9 - access("SWP"."ID"(+)="AL"."ID")
  10 - access("SWP"."ID"="AL"."ID")


Statistics
----------------------------------------------------------
          2  recursive calls
          8  db block gets
     111504  consistent gets
          1  physical reads
        692  redo size
       8075  bytes sent via SQL*Net to client
        502  bytes received via SQL*Net from client
          5  SQL*Net roundtrips to/from client
          0  sorts (memory)
          0  sorts (disk)
         54  rows processed

这里很明显占用资源多,执行时间长的都在XIFENFEI_LOG表的全表扫描上,而该表的where 条件是CLEAR_TIME is null.


分析CLEAR_TIME 列null值的分布

SQL> SELECT count(*) FROM XIFENFEI_LOG WHERE CLEAR_TIME IS NULL;

  COUNT(*)
----------
        48

SQL> SELECT count(*) FROM XIFENFEI_LOG WHERE CLEAR_TIME IS not NULL;

  COUNT(*)
----------
   6899211

通过这里分析可以知道,CLEAR_TIME is null的值非常少,如果能够创建一个index,取到CLEAR_TIME 列null的值,那效率将非常搞.但是有oracle index知识的人都知道,B树index是不包含null列,因此一般性index无法满足该需求.这里思考创建含常数的复合index,而且把CLEAR_TIME放在前面,因为后面的常数一定存在,因此CLEAR_TIME中含有null的记录也就包含在该复合index中.

创建含常数复合index

SQL> create index ind_XIFENFEI_LOG_null on XIFENFEI_LOG (CLEAR_TIME,0) online;

Index created.

再次查看执行计划

SQL> WITH AL AS (SELECT * FROM XIFENFEI_LOG WHERE CLEAR_TIME IS NULL)
  2  SELECT SWP.ID SWP_ID, AL.* FROM AL FULL OUTER JOIN XIFENFEI_LOG_SWAP SWP ON SWP.ID = AL.ID;

50 rows selected.


Execution Plan
----------------------------------------------------------
Plan hash value: 2359331571

-------------------------------------------------------------------------------------------------------------
| Id  | Operation                     | Name                        | Rows  | Bytes | Cost (%CPU)| Time     |
-------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT              |                             |    24 | 11064 |    25   (4)| 00:00:01 |
|   1 |  TEMP TABLE TRANSFORMATION    |                             |       |       |            |          |
|   2 |   LOAD AS SELECT              |                             |       |       |            |          |
|   3 |    TABLE ACCESS BY INDEX ROWID| XIFENFEI_LOG                |    23 |  2576 |    19   (0)| 00:00:01 |
|*  4 |     INDEX RANGE SCAN          | IND_XIFENFEI_LOG_NULL       |    23 |       |     3   (0)| 00:00:01 |
|   5 |   VIEW                        |                             |    24 | 11064 |     6  (17)| 00:00:01 |
|   6 |    UNION-ALL                  |                             |       |       |            |          |
|   7 |     NESTED LOOPS OUTER        |                             |    23 | 10465 |     2   (0)| 00:00:01 |
|   8 |      VIEW                     |                             |    23 | 10304 |     2   (0)| 00:00:01 |
|   9 |       TABLE ACCESS FULL       | SYS_TEMP_0FD9D660D_51B4E691 |    23 |  2576 |     2   (0)| 00:00:01 |
|* 10 |      INDEX UNIQUE SCAN        | XIFENFEI_LOG_SWP_PK         |     1 |     7 |     0   (0)| 00:00:01 |
|* 11 |     HASH JOIN ANTI            |                             |     1 |    20 |     4  (25)| 00:00:01 |
|  12 |      INDEX FULL SCAN          | XIFENFEI_LOG_SWP_PK         |    20 |   140 |     1   (0)| 00:00:01 |
|  13 |      VIEW                     |                             |    23 |   299 |     2   (0)| 00:00:01 |
|  14 |       TABLE ACCESS FULL       | SYS_TEMP_0FD9D660D_51B4E691 |    23 |  2576 |     2   (0)| 00:00:01 |
-------------------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   4 - access("CLEAR_TIME" IS NULL)
  10 - access("SWP"."ID"(+)="AL"."ID")
  11 - access("SWP"."ID"="AL"."ID")


Statistics
----------------------------------------------------------
          2  recursive calls
          8  db block gets
         33  consistent gets
          1  physical reads
        648  redo size
       7688  bytes sent via SQL*Net to client
        502  bytes received via SQL*Net from client
          5  SQL*Net roundtrips to/from client
          0  sorts (memory)
          0  sorts (disk)
         50  rows processed

这里可以发现,该sql使用了创建的含常数的复合index,sql执行时间从4分56秒,提高到现在的1秒钟,逻辑读从当初的111504减小到现在的33,巧用含常数的复合索引使得sql执行效率极大提高.

一次数据库优化全过程分析

最近对客户的一个数据库进行了优化,在本次优化过程中,主要涉及以下方面:
1. 确保系统有足够的内存,处理方法配置Hugepage,减小SGA
2. 优化因为主键表频繁插入引起的user$,con$,cdef$递归查询sql

SQL> select c.name, u.name from con$ c, cdef$ cd, user$ u where
   2 c.con# = cd.con# and cd.enabled = :1 and c.owner# = u.user#;


Execution Plan
----------------------------------------------------------
Plan hash value: 2409458995

-----------------------------------------------------------------------------
| Id  | Operation           | Name  | Rows  | Bytes | Cost (%CPU)| Time     |
-----------------------------------------------------------------------------
|   0 | SELECT STATEMENT    |       |  3820 |   164K|    38   (6)| 00:00:01 |
|*  1 |  HASH JOIN          |       |  3820 |   164K|    38   (6)| 00:00:01 |
|   2 |   TABLE ACCESS FULL | USER$ |    64 |   896 |     3   (0)| 00:00:01 |
|*  3 |   HASH JOIN         |       |  3820 |   111K|    34   (3)| 00:00:01 |
|*  4 |    TABLE ACCESS FULL| CDEF$ |  3820 | 34380 |    25   (0)| 00:00:01 |
|   5 |    TABLE ACCESS FULL| CON$  |  6368 |   130K|     8   (0)| 00:00:01 |
-----------------------------------------------------------------------------

具体见:一次数据库优化全过程分析

模拟enq: TX – allocate ITL entry等待

今天在分析一份awr中发现了较为明显的enq: TX – allocate ITL entry等待,这里通过试验详细重现了enq: TX – allocate ITL entry等待
创建测试对象

SQL> create table t_xifenfei (name char(2000)) pctfree 0 initrans 1;

Table created.

SQL> insert into t_xifenfei select object_name from all_objects    where rownum < 5;

4 rows created.

SQL> commit;

Commit complete.

SQL> alter system flush buffer_cache;

System altered.

SQL>  select distinct dbms_rowid.rowid_relative_fno(rowid) file#,
  2  dbms_rowid.rowid_block_number(rowid) block# from t_xifenfei;

     FILE#     BLOCK#
---------- ----------
         4         32

bbed查看block

BBED> set block 32
        BLOCK#          32

BBED> map
 File: /u01/oracle/oradata/XFF/users01.dbf (0)
 Block: 32                                    Dba:0x00000000
------------------------------------------------------------
 KTB Data Block (Table/Cluster)

 struct kcbh, 20 bytes                      @0

 struct ktbbh, 72 bytes                     @20

 struct kdbh, 14 bytes                      @100

 struct kdbt[1], 4 bytes                    @114

 sb2 kdbr[4]                                @118

 ub1 freespace[38]                          @126    --该block空闲空间为38byte

 ub1 rowdata[8024]                          @164

 ub4 tailchk                                @8188


BBED> p ktbbh
struct ktbbh, 72 bytes                      @20
   ub1 ktbbhtyp                             @20       0x01 (KDDBTDATA)
   union ktbbhsid, 4 bytes                  @24
      ub4 ktbbhsg1                          @24       0x0000d318
      ub4 ktbbhod1                          @24       0x0000d318
   struct ktbbhcsc, 8 bytes                 @28
      ub4 kscnbas                           @28       0xc0320e3b
      ub2 kscnwrp                           @32       0x0b2c
   b2 ktbbhict                              @36       2
   ub1 ktbbhflg                             @38       0x32 (NONE)
   ub1 ktbbhfsl                             @39       0x00
   ub4 ktbbhfnx                             @40       0x01000019
   struct ktbbhitl[0], 24 bytes             @44       --1个itl slot为24byte
      struct ktbitxid, 8 bytes              @44
         ub2 kxidusn                        @44       0x0015
         ub2 kxidslt                        @46       0x0019
         ub4 kxidsqn                        @48       0x00000005
      struct ktbituba, 8 bytes              @52
         ub4 kubadba                        @52       0x0080009d
         ub2 kubaseq                        @56       0x0002
         ub1 kubarec                        @58       0x28
      ub2 ktbitflg                          @60       0x2004 (KTBFUPB)
      union _ktbitun, 2 bytes               @62
         b2 _ktbitfsc                       @62       0
         ub2 _ktbitwrp                      @62       0x0000
      ub4 ktbitbas                          @64       0xc0320e4e
   struct ktbbhitl[1], 24 bytes             @68       --有两个itl slot
      struct ktbitxid, 8 bytes              @68
         ub2 kxidusn                        @68       0x0000
         ub2 kxidslt                        @70       0x0000
         ub4 kxidsqn                        @72       0x00000000
      struct ktbituba, 8 bytes              @76
         ub4 kubadba                        @76       0x00000000
         ub2 kubaseq                        @80       0x0000
         ub1 kubarec                        @82       0x00
      ub2 ktbitflg                          @84       0x0000 (NONE)
      union _ktbitun, 2 bytes               @86
         b2 _ktbitfsc                       @86       0
         ub2 _ktbitwrp                      @86       0x0000
      ub4 ktbitbas                          @88       0x00000000

通过bbed我们可以得出如下结论:
1.该block剩余38 byte 空闲空间可以用来存放数据
2.该block 初始化 itl 为2(和我们设置的1不相符)
3.一个itl slot为24byte

更新表记录

--session 1
SQL> select trim(name) from t_xifenfei;

TRIM(NAME)
--------------------------------------------------------------------------------
ICOL$
I_USER1
CON$
UNDO$

SQL> update t_xifenfei set name='WWW.XIFENFEI.COM' WHERE name='ICOL$';

1 row updated.

--session 2
SQL> update t_xifenfei set name='www.orasos.com' where name='UNDO$';

1 row updated.

--session 3
SQL> update t_xifenfei set name='www.orasos.com' where name='CON$';

1 row updated.

--session 4
SQL> update t_xifenfei set name='www.orasos.com' where name='I_USER1';
--hang住

--session 5
SQL> select event from v$session where  event like 'enq%';

EVENT
----------------------------------------------------------------
enq: TX - allocate ITL entry

通过这里可以看到我们模拟了4个update 该block操作(均未提交),前面三个可以正常的update操作,第四个出现了enq: TX – allocate ITL entry等待,根据我们知识分析(未提交事务的itl不能覆盖,一个dml操作需要一个itl),这里使用了3个itl slot,而我们已经知道一个itl 需要24byte,该block初始化有2个itl,现在这里有3个dml操作成功,即占用了3个itl,所以该block的剩余空间只有38-24=14 byte<24byte,因此无法分配第四个itl slot从而出现了enq: TX - allocate ITL entry等待

bbed验证上述分析

BBED> map
 File: /u01/oracle/oradata/XFF/users01.dbf (0)
 Block: 32                                    Dba:0x00000000
------------------------------------------------------------
 KTB Data Block (Table/Cluster)

 struct kcbh, 20 bytes                      @0

 struct ktbbh, 96 bytes                     @20

 struct kdbh, 14 bytes                      @124

 struct kdbt[1], 4 bytes                    @138

 sb2 kdbr[4]                                @142

 ub1 freespace[14]                          @150

 ub1 rowdata[8024]                          @164

 ub4 tailchk                                @8188


BBED> p ktbbh
struct ktbbh, 96 bytes                      @20
   ub1 ktbbhtyp                             @20       0x01 (KDDBTDATA)
   union ktbbhsid, 4 bytes                  @24
      ub4 ktbbhsg1                          @24       0x0000d318
      ub4 ktbbhod1                          @24       0x0000d318
   struct ktbbhcsc, 8 bytes                 @28
      ub4 kscnbas                           @28       0xc0320eb0
      ub2 kscnwrp                           @32       0x0b2c
   b2 ktbbhict                              @36       3
   ub1 ktbbhflg                             @38       0x32 (NONE)
   ub1 ktbbhfsl                             @39       0x00
   ub4 ktbbhfnx                             @40       0x01000019
   struct ktbbhitl[0], 24 bytes             @44
      struct ktbitxid, 8 bytes              @44
         ub2 kxidusn                        @44       0x0003
         ub2 kxidslt                        @46       0x001f
         ub4 kxidsqn                        @48       0x00000208
      struct ktbituba, 8 bytes              @52
         ub4 kubadba                        @52       0x00800027
         ub2 kubaseq                        @56       0x0414
         ub1 kubarec                        @58       0x01
      ub2 ktbitflg                          @60       0x0001 (NONE)
      union _ktbitun, 2 bytes               @62
         b2 _ktbitfsc                       @62       0
         ub2 _ktbitwrp                      @62       0x0000
      ub4 ktbitbas                          @64       0x00000000
   struct ktbbhitl[1], 24 bytes             @68
      struct ktbitxid, 8 bytes              @68
         ub2 kxidusn                        @68       0x000a
         ub2 kxidslt                        @70       0x000f
         ub4 kxidsqn                        @72       0x00000185
      struct ktbituba, 8 bytes              @76
         ub4 kubadba                        @76       0x0080008a
         ub2 kubaseq                        @80       0x01a6
         ub1 kubarec                        @82       0x0c
      ub2 ktbitflg                          @84       0x0001 (NONE)
      union _ktbitun, 2 bytes               @86
         b2 _ktbitfsc                       @86       0
         ub2 _ktbitwrp                      @86       0x0000
      ub4 ktbitbas                          @88       0x00000000
   struct ktbbhitl[2], 24 bytes             @92
      struct ktbitxid, 8 bytes              @92
         ub2 kxidusn                        @92       0x0008
         ub2 kxidslt                        @94       0x002a
         ub4 kxidsqn                        @96       0x00000217
      struct ktbituba, 8 bytes              @100
         ub4 kubadba                        @100      0x008000cc
         ub2 kubaseq                        @104      0x0291
         ub1 kubarec                        @106      0x12
      ub2 ktbitflg                          @108      0x0001 (NONE)
      union _ktbitun, 2 bytes               @110
         b2 _ktbitfsc                       @110      0
         ub2 _ktbitwrp                      @110      0x0000
      ub4 ktbitbas                          @112      0x00000000

可以看到剩余空间为14byte,事务槽为3个,因此上述分析为正确。

提交会话测试

--session 1
SQL> commit;

Commit complete.

--session 4
SQL> update t_xifenfei set name='www.orasos.com' where name='I_USER1';


1 row updated.

证明commit掉事务后,itl slot可以重利用

总结说明
enq: TX – allocate ITL entry为分配ITL条目的等待,因为PCTFREE不足,BLOCK中没有足够空间分配ITL,ORACLE只能重用ITL,但是这个时候由于没有COMMIT,无法重用ITL,所以会出现allocate ITL等待事件。要解决此类问题,我们可以考虑增加PCTFREE和initrans大小,需要注意该修改只能对于新block生效,已经存放数据的block不会发生改变.另外可以考虑修改业务逻辑,减少频繁访问
