cellcli命令简介

Posted on by

cellcli用途描述

The CellCLI utility is the command-line administration tool for Exadata Cell.
CellCLI runs on each cell to enable you to manage an individual cell.
You use CellCLI to start and stop the cell, to manage cell configuration information,
to enable or disable cells, and to manage objects in the cell environment.
The command-line utility is already installed when Exadata Cell is shipped.

cellcli语法

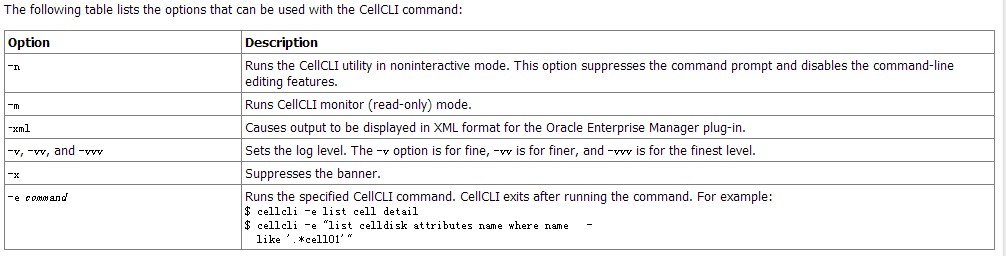

cellcli [port_number] [-n] [-m] [-xml] [-v | -vv | -vvv] [-x] [-e command]


cellcli登录

[root@cell2 ~]# cellcli
CellCLI: Release 11.2.1.2.0 - Production on Tue Dec 25 16:07:01 PST 2012

Copyright (c) 2007, 2009, Oracle.  All rights reserved.
Cell Efficiency Ratio: 24M

CellCLI>

cellcli help

CellCLI> help

 HELP [topic]
   Available Topics:
        ALTER
        ALTER ALERTHISTORY
        ALTER CELL
        ALTER CELLDISK
        ALTER GRIDDISK
        ALTER IORMPLAN
        ALTER LUN
        ALTER THRESHOLD
        ASSIGN KEY
        CALIBRATE
        CREATE
        CREATE CELL
        CREATE CELLDISK
        CREATE FLASHCACHE
        CREATE GRIDDISK
        CREATE KEY
        CREATE THRESHOLD
        DESCRIBE
        DROP
        DROP ALERTHISTORY
        DROP CELL
        DROP CELLDISK
        DROP FLASHCACHE
        DROP GRIDDISK
        DROP THRESHOLD
        EXPORT CELLDISK
        IMPORT CELLDISK
        LIST
        LIST ACTIVEREQUEST
        LIST ALERTDEFINITION
        LIST ALERTHISTORY
        LIST CELL
        LIST CELLDISK
        LIST FLASHCACHE
        LIST FLASHCACHECONTENT
        LIST GRIDDISK
        LIST IORMPLAN
        LIST KEY
        LIST LUN
        LIST METRICCURRENT
        LIST METRICDEFINITION
        LIST METRICHISTORY
        LIST PHYSICALDISK
        LIST THRESHOLD
        SET
        SPOOL
        START

CellCLI> help list

  Enter HELP LIST <object_type> for specific help syntax.
    <object_type>:  {ACTIVEREQUEST | ALERTHISTORY | ALERTDEFINITION | CELL
                     | CELLDISK | FASHCACHE | FLASHCACHECONTENT | GRIDDISK
                     | IORMPLAN | KEY | LUN
                     | METRICCURRENT | METRICDEFINITION | METRICHISTORY
                     | PHYSICALDISK | THRESHOLD }

CellCLI> help list PHYSICALDISK

  Usage: LIST PHYSICALDISK [<name> | <filters>] [<attribute_list>] [DETAIL]

  Purpose: Displays specified attributes for physical disks.

  Arguments:
    <name>:  The name of the physical disk to be displayed.
    <filters>:  an expression which determines which physical disks should
                be displayed.
    <attribute_list>: The attributes that are to be displayed.
                      ATTRIBUTES {ALL | attr1 [, attr2]... }

  Options:
    [DETAIL]: Formats the display as an attribute on each line, with
    an attribute descriptor preceding each value.

  Examples:
    LIST PHYSICALDISK DETAIL

cellcli describe

CellCLI> DESCRIBE PHYSICALDISK
        name
        ctrlFirmware
        ctrlHwVersion
        deviceId
        diskType
        enclosureDeviceId
        errCmdTimeoutCount
        errHardReadCount
        errHardWriteCount
        errMediaCount
        errOtherCount
        errSeekCount
        errorCount
        foreignState
        hotPlugCount
        id
        lastFailureReason
        luns
        makeModel
        notPresentSince
        physicalFirmware
        physicalInsertTime
        physicalInterface
        physicalPort
        physicalRPM
        physicalSerial
        physicalSize
        physicalUseType
        sectorRemapCount
        slotNumber
        status

cellcli list

CellCLI> LIST PHYSICALDISK attributes name ,physicalSize
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/FLASH01       450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/FLASH02       450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/FLASH03       450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/FLASH04       450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk01        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk02        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk03        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk04        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk05        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk06        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk07        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk08        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk09        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk10        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk11        450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/disk12        450M

CellCLI> LIST PHYSICALDISK attributes name ,physicalSize where name like '.*FLASH.*'
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/FLASH01       450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/FLASH02       450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/FLASH03       450M
         /opt/oracle/cell11.2.1.2.0_LINUX_091102/disks/raw/FLASH04       450M

attributes后面可以加上对应的属性,”.*”表示通配符
这里通过help和describe来实现cellcli的基本操作,这里只是提供了一种处理问题的思路,通过help操作来完成cellcli的基本操作.

EXADATA与非EXADATA搭建DATAGURAD关于EHCC特性测试

Posted on by

随着xd的越来越普及，不少的企业使用了xd，但是不少企业因为资金有限，只有一台xd，但是为了实现数据的容灾，可能会使用一台非xd的机器来通过dataguard来实现容灾,但是因为xd的ehcc新特性,官方宣传是只在xd中支持,如果dg的备库不是xd。那么会怎么样,这里通过测试得出如下一些结论：xd与非xd可以构造dg,ehcc功能在xd上无法高效使用。对于这样的环境条件下,使用ORACLE自带压缩效率更高.针对ehcc压缩效率很低,个人猜测,是因为xd检查到备库是非xd环境,直接对ehcc进行了降级压缩处理,从而出现了ehcc的压缩效率比oltp还低(牺牲了xd的性能,确保了数据的安全,看来xd的设计还是考虑的比较全面)
xd基本信息

SQL> select * from v$version;

BANNER
--------------------------------------------------------------------------------
Oracle Database 11g Enterprise Edition Release 11.2.0.2.0 - 64bit Production
PL/SQL Release 11.2.0.2.0 - Production
CORE    11.2.0.2.0      Production
TNS for Linux: Version 11.2.0.2.0 - Production
NLSRTL Version 11.2.0.2.0 - Production

SQL> show parameter clu;

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
cluster_database                     boolean     TRUE
cluster_database_instances           integer     2
cluster_interconnects                string

SQL> SELECT OPEN_MODE, DATABASE_ROLE ,NAME FROM V$DATABASE;

OPEN_MODE            DATABASE_ROLE    NAME
-------------------- ---------------- ---------
READ WRITE           PRIMARY          xxxxxx

SQL> !uname -a
Linux dm01db02 2.6.18-194.3.1.0.4.el5 #1 SMP Sat Feb 19 03:38:37 EST 2011 x86_64 x86_64 x86_64 GNU/Linux

xd创建模拟表

SQL> create table t_FF_c compress as select  * from dba_objects;

Table created.

SQL> create table t_FF_c_o compress for oltp  as select  * from dba_objects;

Table created.

SQL> create table t_FF_q_l compress for query low as select  * from dba_objects;

Table created.

SQL> create table t_FF_q_h compress for query high  as select  * from dba_objects;

Table created.

SQL> create table t_FF_a_l compress for archive low  as select  * from dba_objects;

Table created.

SQL> create table t_FF_a_h compress for archive high as select * from dba_objects;

Table created.

SQL> create table t_ff as select * from dba_objects;

Table created.

xd查询模拟表

SQL> select s.owner,segment_name,s.bytes/1024/1024 t_size,compress_for
from dba_segments s,dba_tables t
where s.owner=t.owner and t.table_name=s.segment_name  and t.table_name like 'T_FF%';  2    3

OWNER                          SEGMENT_NAME                       T_SIZE COMPRESS_FOR
------------------------------ ------------------------------ ---------- ------------
SYS                            T_FF                                   11
SYS                            T_FF_A_H                               10 ARCHIVE HIGH
SYS                            T_FF_A_L                               10 ARCHIVE LOW
SYS                            T_FF_Q_H                               10 QUERY HIGH
SYS                            T_FF_Q_L                               10 QUERY LOW
SYS                            T_FF_C_O                                4 OLTP
SYS                            T_FF_C                                  4 BASIC

通过这里发现,带有非dg的xd使用ehcc压缩效率都低了很多

非xd备库基本信息

SQL> SELECT OPEN_MODE, DATABASE_ROLE ,NAME FROM V$DATABASE;

OPEN_MODE            DATABASE_ROLE    NAME
-------------------- ---------------- ---------
READ ONLY WITH APPLY PHYSICAL STANDBY xxxxxx

SQL> show parameter clu;

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
cluster_database                     boolean     FALSE
cluster_database_instances           integer     1
cluster_interconnects                string

SQL> !uname -a
Linux oradg 2.6.18-238.el5xen #1 SMP Sun Dec 19 14:42:02 EST 2010 x86_64 x86_64 x86_64 GNU/Linux

查询非xd dg备库

SQL> select s.owner,segment_name,s.bytes/1024/1024 t_size,compress_for
from dba_segments s,dba_tables t
where s.owner=t.owner and t.table_name=s.segment_name  and t.table_name like 'T_FF%';

OWNER                          SEGMENT_NAME                       T_SIZE COMPRESS_FOR
------------------------------ ------------------------------ ---------- ------------
SYS                            T_FF                                   11
SYS                            T_FF_A_H                               10 ARCHIVE HIGH
SYS                            T_FF_A_L                               10 ARCHIVE LOW
SYS                            T_FF_Q_H                               10 QUERY HIGH
SYS                            T_FF_Q_L                               10 QUERY LOW
SYS                            T_FF_C_O                                4 OLTP
SYS                            T_FF_C                                  4 BASIC

SQL> SELECT COUNT(*) FROM T_FF_Q_L;

  COUNT(*)
----------
     94709

SQL> SELECT COUNT(*) FROM T_FF_Q_H;

  COUNT(*)
----------
     94710

SQL> SELECT COUNT(*) FROM T_FF_C_O;

  COUNT(*)
----------
     94708

SQL> SELECT COUNT(*) FROM T_FF_C;

  COUNT(*)
----------
     94707

SQL> SELECT COUNT(*) FROM T_FF_A_L;

  COUNT(*)
----------
     94711

SQL> SELECT COUNT(*) FROM T_FF_A_H;

  COUNT(*)
----------
     94712

SQL> select count(*) from t_FF;

  COUNT(*)
----------
    94713

通过这里测试证明,对于非xd dg库,可以正常的查询xd上的ehcc相关表,而且相关大小也相同(物理dg当然相同了)

测试xd与非xd dg测试ehcc的dml操作

--xd 主库
SQL> update t_ff_a_h set owner='www.orasos.com';

94712 rows updated.

SQL> commit;

Commit complete.

SQL>  select s.owner,segment_name,s.bytes/1024/1024 t_size,compress_for
from dba_segments s,dba_tables t
where s.owner=t.owner and t.table_name=s.segment_name  and t.table_name like 'T_FF%';  2    3

OWNER                          SEGMENT_NAME                       T_SIZE COMPRESS_FOR
------------------------------ ------------------------------ ---------- ------------
SYS                            T_FF                                   11
SYS                            T_FF_A_H                               11 ARCHIVE HIGH
SYS                            T_FF_A_L                               10 ARCHIVE LOW
SYS                            T_FF_Q_H                               10 QUERY HIGH
SYS                            T_FF_Q_L                               10 QUERY LOW
SYS                            T_FF_C_O                                4 OLTP
SYS                            T_FF_C                                  4 BASIC

7 rows selected.

SQL> alter system switch logfile;

System altered.

--非xd 备库
SQL> select s.owner,segment_name,s.bytes/1024/1024 t_size,compress_for
from dba_segments s,dba_tables t
where s.owner=t.owner and t.table_name=s.segment_name  and t.table_name like 'T_FF%';

OWNER                          SEGMENT_NAME                       T_SIZE COMPRESS_FOR
------------------------------ ------------------------------ ---------- ------------
SYS                            T_FF                                   11
SYS                            T_FF_A_H                               11 ARCHIVE HIGH
SYS                            T_FF_A_L                               10 ARCHIVE LOW
SYS                            T_FF_Q_H                               10 QUERY HIGH
SYS                            T_FF_Q_L                               10 QUERY LOW
SYS                            T_FF_C_O                                4 OLTP
SYS                            T_FF_C                                  4 BASIC

证明对于xd与非xd构成的dg环境,可以执行dml操作.

测试xd与非xd dg的ehcc的append操作

--xd准备三张测试空表
SQL> create table t_FF_a_l_1 compress for archive low as select * from t_FF  where 1=0;

Table created.

SQL> create table t_FF_a_h_1 compress for archive high  as select * from t_FF  where 1=0;

Table created.

SQL>truncate table t_FF;

Table truncated.

--插入数据(每个表执行5次)
SQL> insert /*+ APPEND */ into t_FF_a_l_1 select * from dba_objects;

94714 rows created.

SQL> commit;

Commit complete.


SQL> insert /*+ APPEND */ into t_FF_h_l_1 select * from dba_objects;

94714 rows created.

SQL> commit;

Commit complete.

SQL> insert /*+ APPEND */ into t_FF select * from dba_objects;

94714 rows created.

SQL> commit;

Commit complete.

--查看相关表数据量
SQL> select count(*) from t_FF_a_l_1;

  COUNT(*)
----------
    473570

SQL> select count(*) from t_FF_a_h_1;

  COUNT(*)
----------
    473570

SQL> select count(*) from t_FF;
  COUNT(*)
----------
    473570

--查看xd主库
SQL> select s.owner,segment_name,s.bytes/1024/1024 t_size,compress_for
from dba_segments s,dba_tables t
where s.owner=t.owner and t.table_name=s.segment_name  and t.table_name like 'T_FF%';

OWNER                          SEGMENT_NAME                       T_SIZE COMPRESS_FOR
------------------------------ ------------------------------ ---------- ------------
SYS                            T_FF                                   52
SYS                            T_FF_A_H                               11 ARCHIVE HIGH
SYS                            T_FF_A_L                               10 ARCHIVE LOW
SYS                            T_FF_Q_H                               10 QUERY HIGH
SYS                            T_FF_Q_L                               10 QUERY LOW
SYS                            T_FF_C_O                                4 OLTP
SYS                            T_FF_C                                  4 BASIC
SYS                            T_FF_A_H_1                             47 ARCHIVE HIGH
SYS                            T_FF_A_L_1                             47 ARCHIVE LOW

--查看非xd备库
SQL> select s.owner,segment_name,s.bytes/1024/1024 t_size,compress_for
from dba_segments s,dba_tables t
where s.owner=t.owner and t.table_name=s.segment_name  and t.table_name like 'T_FF%';

OWNER                          SEGMENT_NAME                       T_SIZE COMPRESS_FOR
------------------------------ ------------------------------ ---------- ------------
SYS                            T_FF                                   52
SYS                            T_FF_A_H                               11 ARCHIVE HIGH
SYS                            T_FF_A_L                               10 ARCHIVE LOW
SYS                            T_FF_Q_H                               10 QUERY HIGH
SYS                            T_FF_Q_L                               10 QUERY LOW
SYS                            T_FF_C_O                                4 OLTP
SYS                            T_FF_C                                  4 BASIC
SYS                            T_FF_A_H_1                             47 ARCHIVE HIGH
SYS                            T_FF_A_L_1                             47 ARCHIVE LOW

试验整体结论
1.xd可以与非xd机器构建dg容灾环境(不会因为非dg不支持ehcc而导致无法搭建他们之间的dg)
2.xd与非xd的dg,ehcc功能大大缩水,基本上和非压缩状态差不多,比OLTP低很多
3.xd与非xd的dg在备库中支持select,dml,hint append等操作,这些操作是因为ehcc表在xd端就进行了ehcc降级导致

EXADATA EHCC初试

Posted on by

今天有幸见识了下EXADATA的强大功能之一EHCC(Exadata Hybrid Columnar Compression),发现压缩效果确实很让人心动,压缩效率大大超过我的预计,压缩97%左右(1-628.1875/20573)
创建模拟表T_FF_SOURCE

14:32:52 SQL> create table t_FF_source as select * from dba_objects;

Table created.

Elapsed: 00:00:00.16

14:35:54 SQL> begin
14:37:05   2  for i in 1..100000 loop
14:37:05   3     insert into t_FF_source select * from dba_jects;
14:37:05   4    commit;
14:37:05   5   end loop;
14:37:05   6  end;
14:37:05   7   /

Elapsed: 00:13:07.76

14:51:05 SQL> select count(*) from t_FF_source;

  COUNT(*)
----------
 197015655

Elapsed: 00:00:33.18


14:51:56 SQL>  col segment_name format a45 heading "Segment Name"
14:52:55 SQL> select segment_name Segment_Name
14:52:55   2  ,      segment_type             "Segment Type"
14:52:55   3  ,      round(sum(bytes)/1024/1024/1024,2)     "Size In GB"
14:52:55   4  from dba_segments
14:52:55   5  where
14:52:56   6  segment_name ='T_FF_SOURCE'
14:52:56   7  group by segment_name,segment_type
14:52:56  8  order by 1;

Segment Name                                  Segment Type       Size In GB
--------------------------------------------- ------------------ ----------
T_FF_SOURCE                                   TABLE                   20.09

创建各种情况下压缩表

--BASE
create table t_FF_c  compress  NOLOGGING as select /*+ PARALLE 24*/ * from t_FF_source;

--OLTP
create table t_FF_c_o compress for oltp NOLOGGING as select /*+ PARALLE 24 */ * from t_FF_source;

--QUERY LOW
create table t_FF_q_l  compress for query low  NOLOGGING as select /*+ PARALLE 24 */ * from t_FF_source;

--QUERY HIGH
create table t_FF_q_h compress for query high parallel 24 nologging as select /*+ PARALLE 12 */ * from t_FF_source;

--ARCHIVE LOW
create table t_FF_a_l compress for archive low parallel 24 nologging as select /*+ PARALLE 12 */ * from t_FF_source;

--ARCHIVE HIGH
create table t_FF_a_h compress for archive high  parallel 24 nologging as select  /*+ PARALLE 12 */ * from t_FF_source;

其实BASE和OLTP是数据库基本的压缩功能,该功能不仅限于EXADATA,但是后面的四种压缩就是我们所说的EHCC,也只有EXADATA用户才能够体验到.

数据压缩结果

16:19:13 SQL> select s.owner,segment_name,s.bytes/1024/1024 t_size,compress_for
16:19:20   2  from dba_segments s,dba_tables t
16:19:20   3  where s.owner=t.owner and t.table_name=s.segment_name
16:19:20   4  and s.owner='FF' and t.table_name like 'T_FF%';

OWNER                          SEGMENT_NAME                            T_SIZE COMPRESS_FOR
------------------------------ ----------------------------------- ---------- ------------
FF                             T_FF_A_L                              1244.625 ARCHIVE LOW
FF                             T_FF_SOURCE                              20573
FF                             T_FF_Q_H                              1244.875 QUERY HIGH
FF                             T_FF_A_H                              628.1875 ARCHIVE HIGH
FF                             T_FF_C                                6961.625 BASIC
FF                             T_FF_Q_L                              2799.875 QUERY LOW
FF                             T_FF_C_O                             7759.1875 OLTP

试验结果证明
1.BASE也OLTP的压缩效率差不多(可能是因为BASIC的PCTFREE为0,OLTP的PCTFREE为10)
2.在EHCC的四种压缩中:QUERY LOW相对压缩率不高,采用LZO压缩算法,但是也比ORACLE自带的压缩效果高很多
3.QUERY HIGH和ARCHIVE LOW压缩率差不多,都是使用ZLIB压缩算法
4.ARCHIVE HIGH是压缩率极高,采用Bzip2压缩算法实现.

EXADATA EM性能监控
