ORA-00704 ORA-00702 恢复

数据库启动报ORA-01092 ORA-00704 ORA-00702错误

SQL> startup
ORACLE instance started.

Total System Global Area 3056513024 bytes
Fixed Size                  2257152 bytes
Variable Size             704646912 bytes
Database Buffers         2332033024 bytes
Redo Buffers               17575936 bytes
Database mounted.
ORA-01092: ORACLE instance terminated. Disconnection forced
ORA-00704: bootstrap process failure
ORA-00702: bootstrap verison '' inconsistent with version '8.0.0.0.0'
Process ID: 27344
Session ID: 191 Serial number: 3

bootstrap-ORA-00702


查看alert日志

Mon Apr 09 16:22:34 2018
ALTER DATABASE   MOUNT
Successful mount of redo thread 1, with mount id 1383493834
Database mounted in Exclusive Mode
Lost write protection disabled
Completed: ALTER DATABASE   MOUNT
Mon Apr 09 16:22:39 2018
ALTER DATABASE OPEN
Thread 1 opened at log sequence 3
  Current log# 3 seq# 3 mem# 0: /u01/app/oracle/oradata/orcl/redo03.log
Successful open of redo thread 1
MTTR advisory is disabled because FAST_START_MTTR_TARGET is not set
SMON: enabling cache recovery
Errors in file /u01/app/oracle/diag/rdbms/orcl/orcl/trace/orcl_ora_27344.trc:
ORA-00704: bootstrap process failure
ORA-00702: bootstrap verison '' inconsistent with version '8.0.0.0.0'
Errors in file /u01/app/oracle/diag/rdbms/orcl/orcl/trace/orcl_ora_27344.trc:
ORA-00704: bootstrap process failure
ORA-00702: bootstrap verison '' inconsistent with version '8.0.0.0.0'
Error 704 happened during db open, shutting down database
USER (ospid: 27344): terminating the instance due to error 704
Instance terminated by USER, pid = 27344
ORA-1092 signalled during: ALTER DATABASE OPEN...
opiodr aborting process unknown ospid (27344) as a result of ORA-1092
Mon Apr 09 16:22:40 2018
ORA-1092 : opitsk aborting process

错误比较明显是由于数据库open过程中bootstrap异常导致,出现此类错误一般是由于软件介质和db不匹配或者bootstrap表的block故障导致.

官方说明

Versions 9.2, 10.1, 10.2, 11.1, 11.2, 12.1

Error:  ORA-00702 bootstrap verison '%s' inconsistent with version '%s'
---------------------------------------------------------------------------
Cause:  The reading version of the boostrap is incompatible with the current
	bootstrap version.
Action: Restore a version of the software that is compatible with this
	bootstrap version

由于bootstrap$以及其中相关表处理比较特殊,如果您遭遇此类bootstrap$相关异常无法解决,需要恢复支持,请联系我们
Phone:13429648788    Q Q:107644445QQ咨询惜分飞    E-Mail:dba@xifenfei.com

记录一次ORA-600 kccpb_sanity_check_2和ORA-600 kcbgtcr_13 错误恢复

晚上朋友告诉我数据库不能open,请求技术支持,检查alert日志发现ORA-00600[kccpb_sanity_check_2]错误导致数据库无法正常mount

Fri Jun  6 23:36:08 2014
alter database mount
Fri Jun  6 23:36:08 2014
This instance was first to mount
Fri Jun  6 23:36:12 2014
Errors in file /on3000/oracle/admin/on3000/udump/on30001_ora_295198.trc:
ORA-00600:内部错误代码, 参数:[kccpb_sanity_check_2], [18045], [17928], [0x000000000], [], [], [], []
ORA-600 signalled during: alter database mount...

依次替换三个控制文件依然无法解决该问题。查询MOS得到解释为[435436.1]

ORA-600 [kccpb_sanity_check_2] indicates that the seq# of the last read block is
higher than the seq# of the control file header block. This is indication of
the lost write of the header block during commit of the previous cf transaction.

出现该故障的原因是因为写丢失导致,而解决该故障的方法有

1) restore a backup of a controlfile and recover

OR

2) recreate the controlfile

OR

3) restore the database from last good backup and recover

该数据库为无备份非归档数据库,因此只能重建控制文件来解决ORA-00600[kccpb_sanity_check_2]故障,通过重建控制文件数据库mount成功.但是在open的过程中又出现需要一个不存在的归档日志(数据库一个节点5月5日异常,另外一个节点5月23日异常,到6月6日我接手中间进行了N多操作,未细细分析原因).
Oracle Database Recovery Check Result检查结果
数据库SCN
1
控制文件中关于数据文件SCN
2

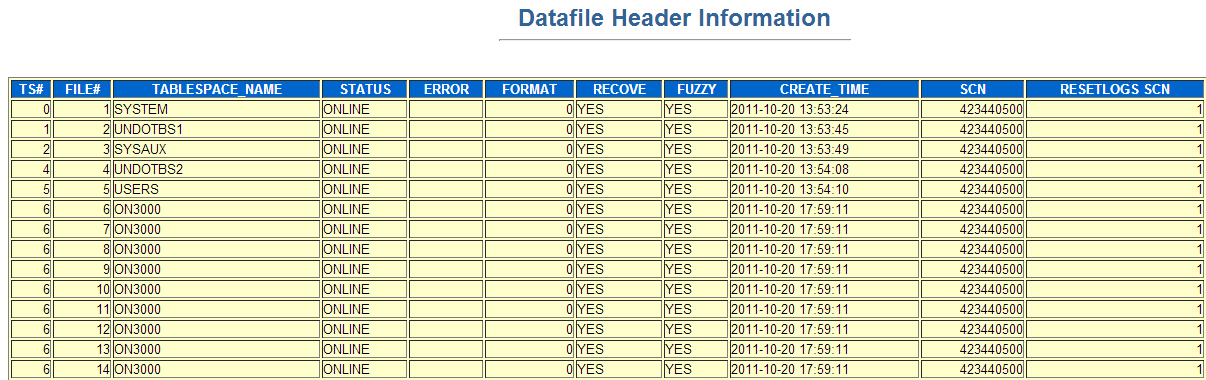

数据文件头SCN
3
REDO SCN
4

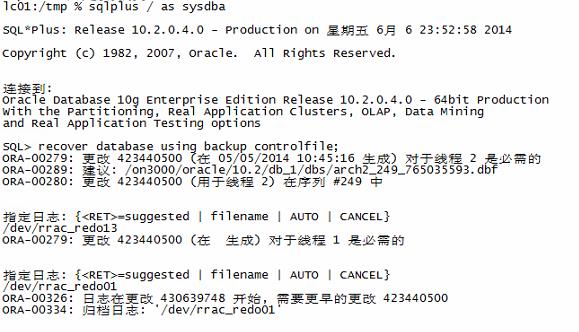

这里明显表示thread#缺少归档,导致恢复过程出现如下提示
5


最后没有办法只能使用_allow_resetlogs_corruption参数跳过redo,然后去open数据库,很不幸出现更加悲催的ORA-00704和ORA-00600[kcbgtcr_13]错误,导致数据库open失败

Sat Jun  7 00:28:58 2014
SMON: enabling cache recovery
Sat Jun  7 00:28:58 2014
Errors in file /on3000/oracle/admin/on3000/udump/on30001_ora_344084.trc:
ORA-00600: 内部错误代码, 参数: [kcbgtcr_13], [], [], [], [], [], [], []
Sat Jun  7 00:28:59 2014
Errors in file /on3000/oracle/admin/on3000/udump/on30001_ora_344084.trc:
ORA-00704: 引导程序进程失败
ORA-00704: 引导程序进程失败
ORA-00600: 内部错误代码, 参数: [kcbgtcr_13], [], [], [], [], [], [], []
Sat Jun  7 00:28:59 2014
Error 704 happened during db open, shutting down database
USER: terminating instance due to error 704
Instance terminated by USER, pid = 344084
ORA-1092 signalled during: alter database open...

对启动过程做10046发现

*** 2014-06-07 00:28:58.528
ksedmp: internal or fatal error
ORA-00600: 内部错误代码, 参数: [kcbgtcr_13], [], [], [], [], [], [], []
Current SQL statement for this session:
select ctime, mtime, stime from obj$ where obj# = :1
----- Call Stack Trace -----
calling              call     entry                argument values in hex
location             type     point                (? means dubious value)
-------------------- -------- -------------------- ----------------------------
ksedst+001c          bl       ksedst1              000000004 ? 10538629C ?
ksedmp+0290          bl       ksedst               104A2CDB0 ?
ksfdmp+0018          bl       03F2735C
kgerinv+00dc         bl       _ptrgl
kgeasnmierr+004c     bl       kgerinv              000000000 ? 10564B4CC ?
                                                   000000004 ? 70000006D3FD6F0 ?
                                                   000000000 ?
kcbassertbd+0074     bl       kgeasnmierr          110195490 ? 110486310 ?
                                                   10564BD54 ? 000000000 ?
                                                   000000000 ? 000000000 ?
                                                   000000000 ? 11043DC90 ?
kcbgtcr+2a68         bl       kcbassertbd          FFFFFFFFFFE7D00 ?
                                                   FFFFFFFFFE7D28 ?
kturbk1+0258         bl       kcbgtcr              000000000 ? 104D23384 ?
                                                   104D2330C ? 000000000 ?
ktrgcm+1294          bl       kturbk1              F0000000F ? FFFFFFFFFFE84B8 ?
                                                   000000000 ? 000000000 ?
                                                   FFFFFFFFFFE84D0 ? 000000000 ?
ktrgtc+0660          bl       ktrgcm               1104B7600 ?
kdsgrp+0094          bl       ktrgtc               0000006C8 ? 000000000 ?
                                                   FFFFFFFFFFE8D80 ?
                                                   28242043335E5162 ?
                                                   103A06D48 ? 70000006F6C87B8 ?
                                                   1051C3528 ?
kdsfbrcb+0298        bl       kdsgrp               1044726E4 ?
                                                   433000000000003B ?
                                                   FFFFFFFFFFE8E30 ?
qertbFetchByRowID+0  bl       03F27E18
69c
qerstFetch+00ec      bl       01F9482C
opifch2+141c         bl       03F25E6C
opifch+003c          bl       opifch2              FFFFFFFFFFEC3D8 ? 000000000 ?
                                                   FFFFFFFFFFEA360 ?
opiodr+0ae0          bl       _ptrgl
rpidrus+01bc         bl       opiodr               5FFFEC840 ? 200000000 ?
                                                   FFFFFFFFFFEC850 ? 500000000 ?
skgmstack+00c8       bl       _ptrgl
rpidru+0088          bl       skgmstack            11049A820 ? 110195490 ?
                                                   000000002 ? 000000000 ?
                                                   FFFFFFFFFFEC3E8 ?
rpiswu2+034c         bl       _ptrgl
rpidrv+095c          bl       rpiswu2              70000006F6C7250 ? 1104851E8 ?
                                                   000000000 ? 000000000 ?
                                                   000000000 ? 000000000 ?
                                                   1101B8C48 ? 000000000 ?
rpifch+0050          bl       rpidrv               5FFFEC840 ? 500000000 ?
                                                   FFFFFFFFFFEC850 ? 06CD75F70 ?
kqdpts+0134          bl       rpifch               11022A3E0 ?
kqrlfc+0258          bl       kqdpts               000000000 ?
kqlbplc+00b4         bl       03F28AF0
kqlblfc+0204         bl       kqlbplc              10011A9A8 ?
adbdrv+1978          bl       01F944B4
opiexe+2c08          bl       adbdrv
opiosq0+19f0         bl       opiexe               FFFFFFFFFFF9550 ? 100000000 ?
                                                   FFFFFFFFFFF8F20 ?
kpooprx+0168         bl       opiosq0              3693644A8 ? 700000010003520 ?
                                                   700000069364428 ?
                                                   A4000110195490 ?
kpoal8+0400          bl       kpooprx              FFFFFFFFFFFB774 ?
                                                   FFFFFFFFFFFB500 ?
                                                   1B0000001B ? 100000001 ?
                                                   000000000 ? A40000000000A4 ?
                                                   000000000 ? 11039FA18 ?
opiodr+0ae0          bl       _ptrgl
ttcpip+1020          bl       _ptrgl
opitsk+1124          bl       01F971E8
opiino+0990          bl       opitsk               1E00000000 ? 000000000 ?
opiodr+0ae0          bl       _ptrgl
opidrv+0484          bl       01F96034
sou2o+0090           bl       opidrv               3C02D9A29C ? 4A006E298 ?
                                                   FFFFFFFFFFFF6B0 ?
opimai_real+01bc     bl       01F939B4
main+0098            bl       opimai_real          000000000 ? 000000000 ?
__start+0070         bl       main                 000000000 ? 000000000 ?

--------------------- Binary Stack Dump ---------------------

--undo cr构造记录
Dump of buffer cache at level 1 for tsn=4, rdba=16777293
BH (700000035fb77b8) file#: 4 rdba: 0x0100004d (4/77) class: 46 ba: 7000000357b4000
  set: 10 blksize: 8192 bsi: 0 set-flg: 2 pwbcnt: 0
  dbwrid: 0 obj: -1 objn: 0 tsn: 4 afn: 4
  hash: [700000035f969c8,70000006d3fd868] lru: [700000035fb7728,70000006d6acff0]
  ckptq: [NULL] fileq: [NULL] objq: [700000035fb7798,7000000693932c0]
  st: CR md: NULL tch: 0
  cr: [scn: 0x0.1],[xid: 0x0.0.0],[uba: 0x0.0.0],[cls: 0x0.19afb5fb],[sfl: 0x0]
  flags:
BH (700000035f969c8) file#: 4 rdba: 0x0100004d (4/77) class: 46 ba: 7000000353d6000
  set: 9 blksize: 8192 bsi: 0 set-flg: 2 pwbcnt: 0
  dbwrid: 0 obj: -1 objn: 0 tsn: 4 afn: 4
  hash: [700000035ff9398,700000035fb77b8] lru: [700000035f96938,70000006d6aca98]
  ckptq: [NULL] fileq: [NULL] objq: [700000035f969a8,700000069390250]
  st: CR md: NULL tch: 0
  cr: [scn: 0x0.1],[xid: 0x0.0.0],[uba: 0x0.0.0],[cls: 0x0.19afb5fa],[sfl: 0x0]
  flags:
BH (700000035ff9398) file#: 4 rdba: 0x0100004d (4/77) class: 46 ba: 700000035f70000
  set: 12 blksize: 8192 bsi: 0 set-flg: 2 pwbcnt: 0
  dbwrid: 0 obj: -1 objn: 0 tsn: 4 afn: 4
  hash: [700000035fd86b8,700000035f969c8] lru: [700000035ff9528,70000006d6adaa0]
  ckptq: [NULL] fileq: [NULL] objq: [7000000693973c8,7000000693973c8]
  st: CR md: NULL tch: 0
  cr: [scn: 0x0.1],[xid: 0x0.0.0],[uba: 0x0.0.0],[cls: 0x0.19afb5f9],[sfl: 0x0]
  flags:
BH (700000035fd86b8) file#: 4 rdba: 0x0100004d (4/77) class: 46 ba: 700000035b94000
  set: 11 blksize: 8192 bsi: 0 set-flg: 2 pwbcnt: 0
  dbwrid: 0 obj: -1 objn: 0 tsn: 4 afn: 4
  hash: [700000035fb76a8,700000035ff9398] lru: [700000035fd8848,70000006d6ad548]
  ckptq: [NULL] fileq: [NULL] objq: [700000069396398,700000069396398]
  st: CR md: NULL tch: 0
  cr: [scn: 0x0.1],[xid: 0x0.0.0],[uba: 0x0.0.0],[cls: 0x0.19afb5f8],[sfl: 0x0]
  flags:
BH (700000035fb76a8) file#: 4 rdba: 0x0100004d (4/77) class: 46 ba: 7000000357b2000
  set: 10 blksize: 8192 bsi: 0 set-flg: 2 pwbcnt: 0
  dbwrid: 0 obj: -1 objn: 0 tsn: 4 afn: 4
  hash: [700000035f968b8,700000035fd86b8] lru: [700000035fb7948,700000035fb7838]
  ckptq: [NULL] fileq: [NULL] objq: [7000000693932c0,700000035fb78a8]
  st: CR md: NULL tch: 0
  cr: [scn: 0x0.1],[xid: 0x0.0.0],[uba: 0x0.0.0],[cls: 0x0.19afb5f7],[sfl: 0x0]
  flags:
BH (700000035f968b8) file#: 4 rdba: 0x0100004d (4/77) class: 46 ba: 7000000353d4000
  set: 9 blksize: 8192 bsi: 0 set-flg: 2 pwbcnt: 0
  dbwrid: 0 obj: -1 objn: 0 tsn: 4 afn: 4
  hash: [70000006d3fd868,700000035fb76a8] lru: [700000035f96b58,700000035f96a48]
  ckptq: [NULL] fileq: [NULL] objq: [700000069390250,700000035f96ab8]
  st: CR md: NULL tch: 0
  cr: [scn: 0x0.1],[xid: 0x0.0.0],[uba: 0x0.0.0],[cls: 0x0.19afb5f6],[sfl: 0x0]
  flags:
WAIT #5: nam='db file sequential read' ela= 135 file#=4 block#=77 blocks=1 obj#=-1 tim=1107709395109
on-disk scn: 0x0.19af5d47
BH (700000035fb77b8) file#: 4 rdba: 0x0100004d (4/77) class: 46 ba: 7000000357b4000
  set: 10 blksize: 8192 bsi: 0 set-flg: 2 pwbcnt: 0
  dbwrid: 0 obj: -1 objn: 0 tsn: 4 afn: 4
  hash: [700000035f969c8,70000006d3fd868] lru: [700000035fb7728,70000006d6acff0]
  ckptq: [NULL] fileq: [NULL] objq: [700000035fb7798,7000000693932c0]
  st: CR md: NULL tch: 0
  cr: [scn: 0x0.1],[xid: 0x0.0.0],[uba: 0x0.0.0],[cls: 0x0.19afb5fb],[sfl: 0x0]
  flags:
Dump of buffer cache at level 10 for tsn=4, rdba=16777293
BH (700000035fb77b8) file#: 4 rdba: 0x0100004d (4/77) class: 46 ba: 7000000357b4000
  set: 10 blksize: 8192 bsi: 0 set-flg: 2 pwbcnt: 0
  dbwrid: 0 obj: -1 objn: 0 tsn: 4 afn: 4
  hash: [700000035f969c8,70000006d3fd868] lru: [700000035fb7728,70000006d6acff0]
  ckptq: [NULL] fileq: [NULL] objq: [700000035fb7798,7000000693932c0]
  st: CR md: NULL tch: 0
  cr: [scn: 0x0.1],[xid: 0x0.0.0],[uba: 0x0.0.0],[cls: 0x0.19afb5fb],[sfl: 0x0]
  flags:
  buffer tsn: 4 rdba: 0x0100004d (4/77)
  scn: 0x0000.19af5d47 seq: 0x01 flg: 0x04 tail: 0x5d470201
  frmt: 0x02 chkval: 0x6d2e type: 0x02=KTU UNDO BLOCK

--obj$ block dump记录
Block header dump:  0x0040007a
 Object id on Block? Y
 seg/obj: 0x12  csc: 0x00.19afb597  itc: 1  flg: -  typ: 1 - DATA
     fsl: 0  fnx: 0x0 ver: 0x01

 Itl           Xid                  Uba         Flag  Lck        Scn/Fsc
0x01   0x000f.012.0002c79c  0x0100004d.6113.1c  --U-    1  fsc 0x0000.19afb598

这里可以知道,数据库在读取obj$的时候使用到了undo cr块的构造,由于某种原因导致构造cr块失败,从而出现ORA-00600[kcbgtcr_13]错误,而因为obj$又在bootstarp$里面,因此又出现ORA-704.所以解决该问题的方法就是让数据库在查询obj$表的时候不再进行cr块构造,比如使用bbed提交事务等方法解决.这里使用bbed提交事务(bbed模拟提交事务一之修改itl),数据库启动成功

SQL> startup
ORACLE 例程已经启动。

Total System Global Area 1610612736 bytes
Fixed Size                  2084400 bytes
Variable Size             973078992 bytes
Database Buffers          620756992 bytes
Redo Buffers               14692352 bytes
数据库装载完毕。
数据库已经打开。

undo异常总结和恢复思路

UNDO异常报错千奇百怪,针对本人遇到的比较常见的undo异常报错进行汇总,仅供参考,数据库恢复过程是千奇百怪的,不能照搬硬套.
ORA-00704/ORA-00376
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: ‘/u01/oracle/oradata/ora11g/undotbs01.dbf’
Error 704 happened during db open, shutting down database
USER (ospid: 17864): terminating the instance due to error 704
Instance terminated by USER, pid = 17864
ORA-1092 signalled during: alter database open…
opiodr aborting process unknown ospid (17864) as a result of ORA-1092

ORA-00600[4097]
Fri Aug 31 23:14:10 2012
Errors in file /u01/oradata/orcl/bdump/orcl_smon_15589.trc:
ORA-00600: internal error code, arguments: [4097], [], [], [], [], [], [], []
Fri Aug 31 23:14:12 2012
Non-fatal internal error happenned while SMON was doing logging scn->time mapping.
SMON encountered 1 out of maximum 100 non-fatal internal errors.

ORA-01595/ORA-00600[4194]
Fri Aug 31 23:14:14 2012
Errors in file /u01/oradata/orcl/bdump/orcl_smon_15589.trc:
ORA-01595: error freeing extent (2) of rollback segment (4))
ORA-00607: Internal error occurred while making a change to a data block
ORA-00600: internal error code, arguments: [4194], [48], [34], [], [], [], [], []

0RA-00600[4193]
Tue Feb 14 09:35:34 2012
Errors in file d:\oracle\product\10.2.0\admin\interlib\udump\interlib_ora_2824.trc:
ORA-00603: ORACLE server session terminated by fatal error
ORA-00600: internal error code, arguments: [4193], [2005], [2008], [], [], [], [], []

ORA-00600[kcfrbd_3]
Wed Dec 05 10:26:35 2012
SMON: enabling tx recovery
Wed Dec 05 10:26:35 2012
Database Characterset is ZHS16GBK
Wed Dec 05 10:26:35 2012
Errors in file d:\oracle\product\10.2.0\admin\orcl\bdump\orcl_smon_548.trc:
ORA-00600: internal error code, arguments: [kcfrbd_3], [2], [2279045], [1], [2277120], [2277120], [], []
SMON: terminating instance due to error 474

ORA-00600[4137]
Fri Jul 6 18:00:40 2012
SMON: ignoring slave err,downgrading to serial rollback
Fri Jul 6 18:00:41 2012
Errors in file /usr/local/oracle/admin/techdb/bdump/techdb_smon_16636.trc:
ORA-00600: internal error code, arguments: [4137], [], [], [], [], [], [], []
ORACLE Instance techdb (pid = 8) – Error 600 encountered while recovering transaction (3, 17).

ORA-01595/ORA-01594
Sat May 12 21:54:17 2012
Errors in file /oracle/app/admin/prmdb/bdump/prmdb2_smon_483522.trc:
ORA-01595: error freeing extent (2) of rollback segment (19))
ORA-01594: attempt to wrap into rollback segment (19) extent (2) which is being freed

ORA-00704/ORA-01555
Fri May 4 21:04:21 2012
select ctime, mtime, stime from obj$ where obj# = :1
Fri May 4 21:04:21 2012
Errors in file /oracle/admin/standdb/udump/perfdb_ora_1286288.trc:
ORA-00704: bootstrap process failure
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 1
ORA-01555: snapshot too old: rollback segment number 40 with name “_SYSSMU40$” too small
Error 704 happened during db open, shutting down database
USER: terminating instance due to error 704
Instance terminated by USER, pid = 1286288
ORA-1092 signalled during: alter database open resetlogs…

ORA-00607/ORA-00600[4194]
Block recovery completed at rba 3994.5.16, scn 0.89979533
Thu Jul 26 13:21:11 2012
Errors in file /orasvr/admin/mispdata/udump/mispdata_ora_2865.trc:
ORA-00604: error occurred at recursive SQL level 1
ORA-00607: Internal error occurred while making a change to a data block
ORA-00600: internal error code, arguments: [4194], [31], [2], [], [], [], [], []
Error 604 happened during db open, shutting down database
USER: terminating instance due to error 604
Instance terminated by USER, pid = 2865
ORA-1092 signalled during: ALTER DATABASE OPEN…

ORA-00704/ORA-00600[4000]
Thu Feb 28 19:29:13 2013
Errors in file /u1/PROD/prodora/db/tech_st/10.2.0/admin/PROD_oracle/udump/prod_ora_20989.trc:
ORA-00704: bootstrap process failure
ORA-00704: bootstrap process failure
ORA-00600: internal error code, arguments: [4000], [50], [], [], [], [], [], []
Thu Feb 28 19:29:13 2013
Error 704 happened during db open, shutting down database
USER: terminating instance due to error 704
Instance terminated by USER, pid = 20989
ORA-1092 signalled during: ALTER DATABASE OPEN RESETLOGS…

undo异常恢复处理思路
除了极少数undo坏块,undo文件丢失外,大部分undo异常是因为redo未被正常进行前滚,从而导致undo回滚异常数据库无法open,解决此类问题,需要结合一般需要结合redo异常处理技巧在其中,一般undo异常处理思路
1.切换undo_management= MANUAL尝试启动数据库,如果不成功进入2
2.设置10513 等event尝试启动数据库,如果不成功进入3
3.使用_offline_rollback_segments/_corrupted_rollback_segments屏蔽回滚段
4.如果依然不能open数据库,考虑使用bbed工具提交事务,修改回滚段状态等操作
5.如果依然还不能open数据库,考虑使用dul

如果您按照上述步骤还不能解决,请联系我们,将为您提供专业数据库技术支持
Phone:13429648788    Q Q:107644445    E-Mail:dba@xifenfei.com

姊妹篇
ORACLE REDO各种异常恢复
ORACLE丢失各种文件导致数据库不能OPEN恢复

记录一次ORA-00316 ORA-00312 redo异常恢复

正常运行的数据库报突然报ORA-00316: log 1 of thread 1, type 286 in header is not log file,异常终止

Fri Feb 21 08:44:42 2014
Thread 1 advanced to log sequence 591 (LGWR switch)
  Current log# 1 seq# 591 mem# 0: J:\ORADATA\ORCL\REDO01.LOG
Fri Feb 21 15:31:20 2014
Errors in file c:\oracle\product\10.2.0\admin\orcl\bdump\orcl_lgwr_10312.trc:
ORA-00316: log 1 of thread 1, type 286 in header is not log file
ORA-00312: online log 1 thread 1: 'J:\ORADATA\ORCL\REDO01.LOG'

Fri Feb 21 15:31:20 2014
Errors in file c:\oracle\product\10.2.0\admin\orcl\bdump\orcl_lgwr_10312.trc:
ORA-00316: log 1 of thread 1, type 286 in header is not log file
ORA-00312: online log 1 thread 1: 'J:\ORADATA\ORCL\REDO01.LOG'

Fri Feb 21 15:31:20 2014
LGWR: terminating instance due to error 316
Fri Feb 21 15:31:20 2014
Errors in file c:\oracle\product\10.2.0\admin\orcl\bdump\orcl_j001_11328.trc:
ORA-00316: log  of thread , type  in header is not log file

Fri Feb 21 15:31:20 2014
Errors in file c:\oracle\product\10.2.0\admin\orcl\bdump\orcl_j000_14116.trc:
ORA-00316: 日志  (用于线程 ) 标头中的类型  不是日志文件

Fri Feb 21 15:31:20 2014
Errors in file c:\oracle\product\10.2.0\admin\orcl\bdump\orcl_dbw1_8964.trc:
ORA-00316: log  of thread , type  in header is not log file

Fri Feb 21 15:31:22 2014
Errors in file c:\oracle\product\10.2.0\admin\orcl\bdump\orcl_dbw0_10592.trc:
ORA-00316: log  of thread , type  in header is not log file
ORA-27041: unable to open file
OSD-04002: unable to open file
O/S-Error: (OS 2) 系统找不到指定的文件。
ORA-27041: unable to open file
OSD-04002: unable to open file
O/S-Error: (OS 2) 系统找不到指定的文件。

Fri Feb 21 15:31:41 2014
Errors in file c:\oracle\product\10.2.0\admin\orcl\bdump\orcl_smon_11112.trc:
ORA-00316: log  of thread , type  in header is not log file

Fri Feb 21 15:31:41 2014
Instance terminated by LGWR, pid = 10312

数据库启动报ORA-00316错误

SQL> alter database open;
alter database open
*
ERROR at line 1:
ORA-00316: log 1 of thread 1, type 286 in header is not log file
ORA-00312: online log 1 thread 1: 'J:\ORADATA\ORCL\REDO01.LOG'

alert日志信息,报ORA-00316 ORA-00312

Sun Feb 23 13:54:08 2014
Started redo scan
Sun Feb 23 13:54:08 2014
Errors in file e:\oracle\product\10.2.0\admin\ora10g\udump\orcl_ora_5544.trc:
ORA-00316: log 1 of thread 1, type 286 in header is not log file
ORA-00312: online log 1 thread 1: 'J:\ORADATA\ORCL\REDO01.LOG'

Sun Feb 23 13:54:08 2014
Aborting crash recovery due to error 316
Sun Feb 23 13:54:08 2014
Errors in file e:\oracle\product\10.2.0\admin\ora10g\udump\orcl_ora_5544.trc:
ORA-00316: log 1 of thread 1, type 286 in header is not log file
ORA-00312: online log 1 thread 1: 'J:\ORADATA\ORCL\REDO01.LOG'

ORA-316 signalled during: alter database open...

通过dump redo header可以看出来redo header完全混乱了,里面很多数据文件内容在里面,初步估计系统或者硬件有问题(不稳定)导致该问题

LOG FILE #1:
  (name #3) J:\ORADATA\ORCL\REDO01.LOG
 Thread 1 redo log links: forward: 2 backward: 0
 siz: 0x7d000 seq: 0x0000024f hws: 0x1 bsz: 512 nab: 0xffffffff flg: 0xa dup: 1
 Archive links: fwrd: 0 back: 0 Prev scn: 0x0000.4f4a1951
 Low scn: 0x0000.4f4e5400 02/21/2014 08:44:42
 Next scn: 0xffff.ffffffff 01/01/1988 00:00:00
 FILE HEADER:
	Software vsn=4280360459=0xff211e0b, Compatibility Vsn=103886850=0x6313002
	Db ID=842019892=0x32303434, Db Name='01a0001'
	Activation ID=1107558657=0x42040101
	Control Seq=842019892=0x32303434, File size=808464688=0x30303130
	File Number=2417, Blksiz=2013738803, File Type=286 UNKNOWN
 descrip:"00-440201|广东省xxxxxx研究院|00014402010037"
 thread: 767 nab: 0x534e4906 seq: 0xbcfebcbd hws: 0xffffffff eot: 55 dis: 66
 reset logs count: 0x7545245 scn: 0x0101.1e097178
 Low scn: 0x4537.2022002c 01/15/2022 20:59:37
 Next scn: 0x3734.46463135 04/30/2017 17:34:49
 Enabled scn: 0x4345.37333038 10/22/2015 02:04:16
 Thread closed scn: 0x3939.43303143 08/25/2024 00:11:31
 Log format vsn: 0x46343835 Disk cksum: 0x1d09 Calc cksum: 0x70ed
 Terminal Recovery Stop scn: 0x3734.35304141
 Terminal Recovery Stamp  03/17/2014 19:59:48
 Most recent redo scn: 0x3636.31303134
 Largest LWN: 758788710 blocks
 Miscellaneous flags: 0x41444534
 Thread internal enable indicator: thr: 263902399, seq: 808464496 scn: 0x3032.30343431

因为当前redo完全损坏,尝试不完全恢复并结合隐含参数(_allow_resetlogs_corruption)拉库,出现错误ORA-00704 ORA-00604 ORA-01555

Sun Feb 23 14:03:37 2014
SMON: enabling cache recovery
Sun Feb 23 14:03:39 2014
ORA-01555 caused by SQL statement below (SQL ID: 4krwuz0ctqxdt, SCN: 0x0000.4f4e5405):
Sun Feb 23 14:03:39 2014
select ctime, mtime, stime from obj$ where obj# = :1
Sun Feb 23 14:03:39 2014
Errors in file e:\oracle\product\10.2.0\admin\ora10g\udump\orcl_ora_5504.trc:
ORA-00704: bootstrap process failure
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 1
ORA-01555: snapshot too old: rollback segment number 11 with name "_SYSSMU11$" too small

Error 704 happened during db open, shutting down database
USER: terminating instance due to error 704

通过修改scn,让数据库顺利open

模拟基表事务未提交数据库crash,undo丢失恢复异常恢复

对于基表特别是bootstrap$中的表,如果进行了dml操作,但是没有提交,这个时候数据库crash,而且undo异常.对于类似的场景,都是很多数据库恢复的人都有畏惧,因为_corrupted_rollback_segments参数不能起作用.本实验dml修改seq$表,最终却引起了undo$和I_UNDO1异常(他们都在bootstrap$中)
模拟seq$表事务未提交

SQL> select * from v$version;

BANNER
--------------------------------------------------------------------------------
Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - Production
PL/SQL Release 11.2.0.3.0 - Production
CORE    11.2.0.3.0      Production
TNS for Linux: Version 11.2.0.3.0 - Production
NLSRTL Version 11.2.0.3.0 - Production

SQL> select sysdate "www.orasos.com" from dual;

www.xifenfei
------------
31-AUG-13

SQL> CREATE SEQUENCE seq_xifenfei INCREMENT BY 1 START WITH 1 CACHE 3;

Sequence created.

SQL> select object_id from dba_objects where object_name='SEQ_XIFENFEI';

 OBJECT_ID
----------
     77282

SQL> SELECT MINVALUE,HIGHWATER,INCREMENT$, CYCLE#,ORDER$,CACHE from seq$ where obj#=77282;

  MINVALUE  HIGHWATER INCREMENT$     CYCLE#     ORDER$      CACHE
---------- ---------- ---------- ---------- ---------- ----------
         1          1          1          0          0          3

SQL> update seq$ set  CYCLE#=3 where obj#=77282;

1 row updated.

--另外一个会话abort数据库
SQL> shutdown abort;
ORACLE instance shut down.

--人工rm掉undotbs01.dbf文件

--启动数据库
SQL> startup
ORACLE instance started.

Total System Global Area  175775744 bytes
Fixed Size                  1343668 bytes
Variable Size             117444428 bytes
Database Buffers           50331648 bytes
Redo Buffers                6656000 bytes
Database mounted.
ORA-01157: cannot identify/lock data file 3 - see DBWR trace file
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'

--离线数据文件
SQL> alter database datafile 3 offline;

Database altered.

--尝试open数据库
SQL> alter database open;
alter database open
*
ERROR at line 1:
ORA-01092: ORACLE instance terminated. Disconnection forced
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'
Process ID: 17864
Session ID: 125 Serial number: 5

alert日志

SMON: enabling cache recovery
Mon Aug 26 17:08:49 2013
ARC3 started with pid=25, OS id=17902
ARC1: Archival started
ARC2: Archival started
ARC1: Becoming the 'no FAL' ARCH
ARC1: Becoming the 'no SRL' ARCH
ARC2: Becoming the heartbeat ARCH
Archived Log entry 13 added for thread 1 sequence 13 ID 0xfb920b77 dest 1:
Errors in file /u01/oracle/diag/rdbms/ora11g/ora11g/trace/ora11g_ora_17864.trc:
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'
Errors in file /u01/oracle/diag/rdbms/ora11g/ora11g/trace/ora11g_ora_17864.trc:
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'
Error 704 happened during db open, shutting down database
USER (ospid: 17864): terminating the instance due to error 704
Instance terminated by USER, pid = 17864
ORA-1092 signalled during: alter database open...
opiodr aborting process unknown ospid (17864) as a result of ORA-1092

做10046跟踪

SQL> conn / as sysdba
Connected to an idle instance.
SQL> startup nomount;
ORACLE instance started.

Total System Global Area  175775744 bytes
Fixed Size                  1343668 bytes
Variable Size             117444428 bytes
Database Buffers           50331648 bytes
Redo Buffers                6656000 bytes

SQL> alter database mount;

Database altered.

SQL> alter session set events  '10046 trace name context forever,level 12';

Session altered.

SQL> alter session set db_file_multiblocK_read_count=1;

Session altered.

SQL> alter database open;
alter database open
*
ERROR at line 1:
ORA-01092: ORACLE instance terminated. Disconnection forced
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'
Process ID: 17979
Session ID: 125 Serial number: 3

trace文件内容

PARSING IN CURSOR #3064524800 len=142 dep=3 uid=0 oct=3 lid=0 tim=1377508386082495 hv=361892850 ad='265c66d0' sqlid='7bd391hat42zk'
select /*+ rule */ name,file#,block#,status$,user#,undosqn,xactsqn,scnbas,scnwrp,DECODE(inst#,0,NULL,inst#),ts#,spare1 from undo$ where us#=:1
END OF STMT
PARSE #3064524800:c=2999,e=2162,p=0,cr=0,cu=0,mis=1,r=0,dep=3,og=3,plh=0,tim=1377508386082492
BINDS #3064524800:
 Bind#0
  oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00
  oacflg=08 fl2=0001 frm=00 csi=00 siz=24 off=0
  kxsbbbfp=b6a8ebd0  bln=22  avl=02  flg=05
  value=27
EXEC #3064524800:c=1999,e=2030,p=0,cr=0,cu=0,mis=1,r=0,dep=3,og=3,plh=906473769,tim=1377508386084833
WAIT #3064524800: nam='db file sequential read' ela= 65 file#=1 block#=321 blocks=1 obj#=34 tim=1377508386085083
WAIT #3064524800: nam='db file sequential read' ela= 21 file#=1 block#=225 blocks=1 obj#=15 tim=1377508386085208
FETCH #3064524800:c=0,e=375,p=2,cr=2,cu=0,mis=0,r=1,dep=3,og=3,plh=906473769,tim=1377508386085319
STAT #3064524800 id=1 cnt=1 pid=0 pos=1 obj=15 op='TABLE ACCESS BY INDEX ROWID UNDO$ (cr=2 pr=2 pw=0 time=362 us)'
STAT #3064524800 id=2 cnt=1 pid=1 pos=1 obj=34 op='INDEX UNIQUE SCAN I_UNDO1 (cr=1 pr=1 pw=0 time=223 us)'
CLOSE #3064524800:c=0,e=12,dep=3,type=0,tim=1377508386085657
WAIT #3064511164: nam='control file sequential read' ela= 33 file#=0 block#=1 blocks=1 obj#=15 tim=1377508386085816
WAIT #3064511164: nam='control file sequential read' ela= 18 file#=0 block#=15 blocks=1 obj#=15 tim=1377508386085889
WAIT #3064511164: nam='control file sequential read' ela= 18 file#=0 block#=17 blocks=1 obj#=15 tim=1377508386085994
WAIT #3064511164: nam='control file sequential read' ela= 18 file#=0 block#=23 blocks=1 obj#=15 tim=1377508386086058
WAIT #3064511164: nam='control file sequential read' ela= 17 file#=0 block#=1 blocks=1 obj#=15 tim=1377508386086135
WAIT #3064511164: nam='control file sequential read' ela= 15 file#=0 block#=15 blocks=1 obj#=15 tim=1377508386086196
WAIT #3064511164: nam='control file sequential read' ela= 15 file#=0 block#=17 blocks=1 obj#=15 tim=1377508386086255
WAIT #3064511164: nam='control file sequential read' ela= 18 file#=0 block#=32 blocks=1 obj#=15 tim=1377508386086317
DDE rules only execution for: ORA 1110
----- START Event Driven Actions Dump ----
---- END Event Driven Actions Dump ----
----- START DDE Actions Dump -----
Executing SYNC actions
----- START DDE Action: 'DB_STRUCTURE_INTEGRITY_CHECK' (Async) -----
Successfully dispatched
----- END DDE Action: 'DB_STRUCTURE_INTEGRITY_CHECK' (SUCCESS, 0 csec) -----
Executing ASYNC actions
----- END DDE Actions Dump (total 0 csec) -----
FETCH #3064511164:c=8998,e=9239,p=5,cr=6,cu=0,mis=0,r=0,dep=2,og=4,plh=2853959010,tim=1377508386088336
STAT #3064511164 id=1 cnt=0 pid=0 pos=1 obj=18 op='TABLE ACCESS BY INDEX ROWID OBJ$ (cr=0 pr=0 pw=0 time=82 us)'
STAT #3064511164 id=2 cnt=1 pid=1 pos=1 obj=37 op='INDEX RANGE SCAN I_OBJ2 (cr=3 pr=3 pw=0 time=1166 us)'
=====================
PARSE ERROR #3064512008:len=60 dep=1 uid=0 oct=3 lid=0 tim=1377508386088729 err=604
SELECT NULL FROM PROPS$ WHERE NAME='BOOTSTRAP_UPGRADE_ERROR'
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'

_corrupted_rollback_segments无法打开数据库

SQL> show parameter _corrupted_rollback_segments;

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
_corrupted_rollback_segments         string      _SYSSMU22_1366820418$, _SYSSMU
                                                 23_2165404374$, _SYSSMU24_1842
                                                 376483$, _SYSSMU25_2373003110$
                                                 , _SYSSMU26_3635237253$, _SYSS
                                                 MU27_1730246918$, _SYSSMU28_31
                                                 59173804$, _SYSSMU29_141006113
                                                 4$, _SYSSMU30_2299069988$, _SY
                                                 SSMU31_290584066$
SQL> startup pfile='/tmp/pfile' mount
ORACLE instance started.

Total System Global Area  175775744 bytes
Fixed Size                  1343668 bytes
Variable Size             117444428 bytes
Database Buffers           50331648 bytes
Redo Buffers                6656000 bytes
Database mounted.

SQL> alter database open;
alter database open
*
ERROR at line 1:
ORA-01092: ORACLE instance terminated. Disconnection forced
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'
Process ID: 17979
Session ID: 125 Serial number: 3

dump block225

Block header dump:  0x004000e1
 Object id on Block? Y
 seg/obj: 0xf  csc: 0xb8c.3c0c297b  itc: 1  flg: O  typ: 1 - DATA
     fsl: 0  fnx: 0x0 ver: 0x01

 Itl           Xid                  Uba        Flag  Lck        Scn/Fsc
0x01   0x0000.001.00000034  0x00400221.0034.08  --U-    1  fsc 0x0000.3c0c297c
bdba: 0x004000e1
data_block_dump,data header at 0xb6b8a644

bbed 提交225事务

[oracle@xifenfei ~]$ bbed password=blockedit filename='/u01/oracle/oradata/ora11g/system01.dbf' blocksize=8192

BBED: Release 2.0.0.0.0 - Limited Production on Mon Aug 26 17:31:09 2013

Copyright (c) 1982, 2007, Oracle.  All rights reserved.

************* !!! For Oracle Internal Use only !!! ***************

BBED> set block 225
        BLOCK#          225

BBED> map
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 225                                   Dba:0x00000000
------------------------------------------------------------
 KTB Data Block (Table/Cluster)

 struct kcbh, 20 bytes                      @0

 struct ktbbh, 48 bytes                     @20

 struct kdbh, 14 bytes                      @68

 struct kdbt[1], 4 bytes                    @82

 sb2 kdbr[32]                               @86

 ub1 freespace[59]                          @150

 ub1 rowdata[7979]                          @209

 ub4 tailchk                                @8188

BBED> p ktbbh
struct ktbbh, 48 bytes                      @20
   ub1 ktbbhtyp                             @20       0x01 (KDDBTDATA)
   union ktbbhsid, 4 bytes                  @24
      ub4 ktbbhsg1                          @24       0x0000000f
      ub4 ktbbhod1                          @24       0x0000000f
   struct ktbbhcsc, 8 bytes                 @28
      ub4 kscnbas                           @28       0x3c0c297b
      ub2 kscnwrp                           @32       0x0b8c
   b2 ktbbhict                              @36      -2047
   ub1 ktbbhflg                             @38       0x03 (KTBFONFL)
   ub1 ktbbhfsl                             @39       0x00
   ub4 ktbbhfnx                             @40       0x00000000
   struct ktbbhitl[0], 24 bytes             @44
      struct ktbitxid, 8 bytes              @44
         ub2 kxidusn                        @44       0x0000
         ub2 kxidslt                        @46       0x0001
         ub4 kxidsqn                        @48       0x00000034
      struct ktbituba, 8 bytes              @52
         ub4 kubadba                        @52       0x00400221
         ub2 kubaseq                        @56       0x0034
         ub1 kubarec                        @58       0x08
      ub2 ktbitflg                          @60       0x2001 (KTBFUPB)
      union _ktbitun, 2 bytes               @62
         b2 _ktbitfsc                       @62       0
         ub2 _ktbitwrp                      @62       0x0000
      ub4 ktbitbas                          @64       0x3c0c297c

BBED> set mode edit
        MODE            Edit

BBED> m /x 0180 offset 60
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 225              Offsets:   60 to   91           Dba:0x00000000
------------------------------------------------------------------------
 01800000 7c290c3c 00012000 ffff5200 8d003017 30170000 20008e1f 4106f805

 <32 bytes per line>

BBED> sum apply
Check value for File 0, Block 225:
current = 0x55db, required = 0x55db

BBED> verify
DBVERIFY - Verification starting
FILE = /u01/oracle/oradata/ora11g/system01.dbf
BLOCK = 225

Block Checking: DBA = 4194529, Block Type = KTB-managed data block
data header at 0xb6773244
kdbchk: row locked by non-existent transaction
        table=0   slot=20
        lockid=1   ktbbhitc=1
Block 225 failed with check code 6101

DBVERIFY - Verification complete

Total Blocks Examined         : 1
Total Blocks Processed (Data) : 1
Total Blocks Failing   (Data) : 1
Total Blocks Processed (Index): 0
Total Blocks Failing   (Index): 0
Total Blocks Empty            : 0
Total Blocks Marked Corrupt   : 0
Total Blocks Influx           : 0

BBED> p *kdbr[20]
rowdata[608]
------------
ub1 rowdata[608]                            @817      0x2c

BBED> dump
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 225              Offsets:  817 to  848           Dba:0x00000000
------------------------------------------------------------------------
 2c011102 c115145f 53595353 4d553230 5f343035 34303430 31322402 c10202c1

 <32 bytes per line>

BBED> m /x 002c
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 225              Offsets:  817 to  848           Dba:0x00000000
------------------------------------------------------------------------
 002c1102 c115145f 53595353 4d553230 5f343035 34303430 31322402 c10202c1

 <32 bytes per line>

BBED> sum apply
Check value for File 0, Block 225:
current = 0x79f6, required = 0x79f6

BBED> verify
DBVERIFY - Verification starting
FILE = /u01/oracle/oradata/ora11g/system01.dbf
BLOCK = 225

Block Checking: DBA = 4194529, Block Type = KTB-managed data block
data header at 0xb6773244
kdbchk: row locked by non-existent transaction
        table=0   slot=20
        lockid=44   ktbbhitc=1
Block 225 failed with check code 6101

DBVERIFY - Verification complete

Total Blocks Examined         : 1
Total Blocks Processed (Data) : 1
Total Blocks Failing   (Data) : 1
Total Blocks Processed (Index): 0
Total Blocks Failing   (Index): 0
Total Blocks Empty            : 0
Total Blocks Marked Corrupt   : 0
Total Blocks Influx           : 0

BBED> p *kdbr[20]
rowdata[608]
------------
ub1 rowdata[608]                            @817      0x00

BBED> d
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 225              Offsets:  817 to  848           Dba:0x00000000
------------------------------------------------------------------------
 002c1102 c115145f 53595353 4d553230 5f343035 34303430 31322402 c10202c1

 <32 bytes per line>

BBED> m /x 2c00
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 225              Offsets:  817 to  848           Dba:0x00000000
------------------------------------------------------------------------
 2c001102 c115145f 53595353 4d553230 5f343035 34303430 31322402 c10202c1

 <32 bytes per line>

BBED> sum apply
Check value for File 0, Block 225:
current = 0x55da, required = 0x55da

BBED> verify
DBVERIFY - Verification starting
FILE = /u01/oracle/oradata/ora11g/system01.dbf
BLOCK = 225


DBVERIFY - Verification complete

Total Blocks Examined         : 1
Total Blocks Processed (Data) : 1
Total Blocks Failing   (Data) : 0
Total Blocks Processed (Index): 0
Total Blocks Failing   (Index): 0
Total Blocks Empty            : 0
Total Blocks Marked Corrupt   : 0
Total Blocks Influx           : 0

dump 321 block

SQL> alter system dump datafile '/u01/oracle/oradata/ora11g/system01.dbf' block 321;

System altered.

SQL> select value from v$diag_info where name='Default Trace File';

VALUE
--------------------------------------------------------------------------------
/u01/oracle/diag/rdbms/ora11g/ora11g/trace/ora11g_ora_19704.trc

--trace文件
Block header dump:  0x00400141
 Object id on Block? Y
 seg/obj: 0x22  csc: 0xb8c.3c0c28ec  itc: 2  flg: -  typ: 2 - INDEX
     fsl: 0  fnx: 0x0 ver: 0x01

 Itl           Xid                  Uba         Flag  Lck        Scn/Fsc
0x01   0x0000.000.00000000  0x00000000.0000.00  ----    0  fsc 0x0000.00000000
0x02   0x0000.038.00000033  0x0040021e.0033.3d  --U-    1  fsc 0x0000.3c0c28ed

bbed提交321 block 事务

BBED> set block 321
        BLOCK#          321

BBED> map
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 321                                   Dba:0x00000000
------------------------------------------------------------
 KTB Data Block (Index Leaf)

 struct kcbh, 20 bytes                      @0

 struct ktbbh, 72 bytes                     @20

 struct kdxle, 32 bytes                     @92

 b2 kd_off[32]                              @124

 ub1 freespace[7581]                        @188

 ub1 rowdata[351]                           @7769

 ub4 tailchk                                @8188


BBED> p ktbbh
struct ktbbh, 72 bytes                      @20
   ub1 ktbbhtyp                             @20       0x02 (KDDBTINDEX)
   union ktbbhsid, 4 bytes                  @24
      ub4 ktbbhsg1                          @24       0x00000022
      ub4 ktbbhod1                          @24       0x00000022
   struct ktbbhcsc, 8 bytes                 @28
      ub4 kscnbas                           @28       0x3c0c28ec
      ub2 kscnwrp                           @32       0x0b8c
   b2 ktbbhict                              @36      -2046
   ub1 ktbbhflg                             @38       0x02 (NONE)
   ub1 ktbbhfsl                             @39       0x00
   ub4 ktbbhfnx                             @40       0x00000000
   struct ktbbhitl[0], 24 bytes             @44
      struct ktbitxid, 8 bytes              @44
         ub2 kxidusn                        @44       0x0000
         ub2 kxidslt                        @46       0x0000
         ub4 kxidsqn                        @48       0x00000000
      struct ktbituba, 8 bytes              @52
         ub4 kubadba                        @52       0x00000000
         ub2 kubaseq                        @56       0x0000
         ub1 kubarec                        @58       0x00
      ub2 ktbitflg                          @60       0x0000 (NONE)
      union _ktbitun, 2 bytes               @62
         b2 _ktbitfsc                       @62       0
         ub2 _ktbitwrp                      @62       0x0000
      ub4 ktbitbas                          @64       0x00000000
   struct ktbbhitl[1], 24 bytes             @68
      struct ktbitxid, 8 bytes              @68
         ub2 kxidusn                        @68       0x0000
         ub2 kxidslt                        @70       0x0038
         ub4 kxidsqn                        @72       0x00000033
      struct ktbituba, 8 bytes              @76
         ub4 kubadba                        @76       0x0040021e
         ub2 kubaseq                        @80       0x0033
         ub1 kubarec                        @82       0x3d
      ub2 ktbitflg                          @84       0x2001 (KTBFUPB)
      union _ktbitun, 2 bytes               @86
         b2 _ktbitfsc                       @86       0
         ub2 _ktbitwrp                      @86       0x0000
      ub4 ktbitbas                          @88       0x3c0c28ed


BBED> m /x 0180 offset 84
Warning: contents of previous BIFILE will be lost. Proceed? (Y/N) y
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 321              Offsets:   84 to  595           Dba:0x00000000
------------------------------------------------------------------------
 01800000 ed280c3c 00008001 00000000 20006400 011e9d1d 00000000 00000000
 00000000 06000000 601f0000 561f4b1f 401f351f 2a1f1f1f 141f091f fe1ef31e
 e81edd1e d21ec71e bc1eb11e a61e9b1e 901e851e 7a1e6f1e 641e591e 4e1e431e
 381e2d1e 221e171e 0c1e011e 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000

 <32 bytes per line>

BBED> sum apply
Check value for File 0, Block 321:
current = 0x990e, required = 0x990e

BBED> verify
DBVERIFY - Verification starting
FILE = /u01/oracle/oradata/ora11g/system01.dbf
BLOCK = 321

Block Checking: DBA = 4194625, Block Type = KTB-managed data block
**** actual rows locked by itl 2  = 1 != # in trans. header = 0
---- end index block validation
Block 321 failed with check code 6401

DBVERIFY - Verification complete

Total Blocks Examined         : 1
Total Blocks Processed (Data) : 0
Total Blocks Failing   (Data) : 0
Total Blocks Processed (Index): 1
Total Blocks Failing   (Index): 1
Total Blocks Empty            : 0
Total Blocks Marked Corrupt   : 0
Total Blocks Influx           : 0

BBED> p kdxle
struct kdxle, 32 bytes                      @92
   struct kdxlexco, 16 bytes                @92
      ub1 kdxcolev                          @92       0x00
      ub1 kdxcolok                          @93       0x00
      ub1 kdxcoopc                          @94       0x80
      ub1 kdxconco                          @95       0x01
      ub4 kdxcosdc                          @96       0x00000000
      sb2 kdxconro                          @100      32
      b2 kdxcofbo                           @102      100
      b2 kdxcofeo                           @104      7681
      b2 kdxcoavs                           @106      7581
   b2 kdxlespl                              @108      0
   sb2 kdxlende                             @110      0
   ub4 kdxlenxt                             @112      0x00000000
   ub4 kdxleprv                             @116      0x00000000
   ub1 kdxledsz                             @120      0x06
   ub1 kdxleunuse                           @121      0x00

BBED> m /x 00 offset 95
 File: /u01/oracle/oradata/ora11g/system01.dbf (0)
 Block: 321              Offsets:   95 to  606           Dba:0x00000000
------------------------------------------------------------------------
 00000000 00200064 00011e9d 1d000000 00000000 00000000 00060000 00601f00
 00561f4b 1f401f35 1f2a1f1f 1f141f09 1ffe1ef3 1ee81edd 1ed21ec7 1ebc1eb1
 1ea61e9b 1e901e85 1e7a1e6f 1e641e59 1e4e1e43 1e381e2d 1e221e17 1e0c1e01
 1e000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000

 <32 bytes per line>

BBED> sum apply
Check value for File 0, Block 321:
current = 0x380e, required = 0x380e

BBED> verify
DBVERIFY - Verification starting
FILE = /u01/oracle/oradata/ora11g/system01.dbf
BLOCK = 321


DBVERIFY - Verification complete

Total Blocks Examined         : 1
Total Blocks Processed (Data) : 0
Total Blocks Failing   (Data) : 0
Total Blocks Processed (Index): 1
Total Blocks Failing   (Index): 0
Total Blocks Empty            : 0
Total Blocks Marked Corrupt   : 0
Total Blocks Influx           : 0

bbed提交事务open依旧报错

SQL> alter database open;
alter database open
*
ERROR at line 1:
ORA-01092: ORACLE instance terminated. Disconnection forced
ORA-00704: bootstrap process failure
ORA-00604: error occurred at recursive SQL level 2
ORA-00376: file 3 cannot be read at this time
ORA-01110: data file 3: '/u01/oracle/oradata/ora11g/undotbs01.dbf'
Process ID: 20229
Session ID: 125 Serial number: 5

做10046的trace文件错误依旧

=====================
PARSING IN CURSOR #3065238148 len=142 dep=3 uid=0 oct=3 lid=0 tim=1377519352653391 hv=361892850 ad='269a8064' sqlid='7bd391hat42zk'
select /*+ rule */ name,file#,block#,status$,user#,undosqn,xactsqn,scnbas,scnwrp,DECODE(inst#,0,NULL,inst#),ts#,spare1 from undo$ where us#=:1
END OF STMT
PARSE #3065238148:c=2999,e=3152,p=0,cr=0,cu=0,mis=1,r=0,dep=3,og=3,plh=0,tim=1377519352653388
BINDS #3065238148:
 Bind#0
  oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00
  oacflg=08 fl2=0001 frm=00 csi=00 siz=24 off=0
  kxsbbbfp=b6b32268  bln=22  avl=02  flg=05
  value=27
EXEC #3065238148:c=2999,e=3182,p=0,cr=0,cu=0,mis=1,r=0,dep=3,og=3,plh=906473769,tim=1377519352657030
WAIT #3065238148: nam='db file sequential read' ela= 169 file#=1 block#=321 blocks=1 obj#=34 tim=1377519352657400
WAIT #3065238148: nam='db file sequential read' ela= 25 file#=1 block#=225 blocks=1 obj#=15 tim=1377519352657546
FETCH #3065238148:c=1000,e=578,p=2,cr=2,cu=0,mis=0,r=1,dep=3,og=3,plh=906473769,tim=1377519352657738
STAT #3065238148 id=1 cnt=1 pid=0 pos=1 obj=15 op='TABLE ACCESS BY INDEX ROWID UNDO$ (cr=2 pr=2 pw=0 time=538 us)'
STAT #3065238148 id=2 cnt=1 pid=1 pos=1 obj=34 op='INDEX UNIQUE SCAN I_UNDO1 (cr=1 pr=1 pw=0 time=338 us)'
CLOSE #3065238148:c=0,e=13,dep=3,type=0,tim=1377519352657942
WAIT #3065201888: nam='control file sequential read' ela= 111 file#=0 block#=1 blocks=1 obj#=15 tim=1377519352658170
WAIT #3065201888: nam='control file sequential read' ela= 19 file#=0 block#=16 blocks=1 obj#=15 tim=1377519352658269
WAIT #3065201888: nam='control file sequential read' ela= 18 file#=0 block#=18 blocks=1 obj#=15 tim=1377519352658329
WAIT #3065201888: nam='control file sequential read' ela= 19 file#=0 block#=24 blocks=1 obj#=15 tim=1377519352658391
WAIT #3065201888: nam='control file sequential read' ela= 17 file#=0 block#=1 blocks=1 obj#=15 tim=1377519352658469
WAIT #3065201888: nam='control file sequential read' ela= 16 file#=0 block#=16 blocks=1 obj#=15 tim=1377519352658528
WAIT #3065201888: nam='control file sequential read' ela= 28 file#=0 block#=18 blocks=1 obj#=15 tim=1377519352658787
WAIT #3065201888: nam='control file sequential read' ela= 20 file#=0 block#=32 blocks=1 obj#=15 tim=1377519352658883
DDE rules only execution for: ORA 1110
----- START Event Driven Actions Dump ----
---- END Event Driven Actions Dump ----
----- START DDE Actions Dump -----
Executing SYNC actions
----- START DDE Action: 'DB_STRUCTURE_INTEGRITY_CHECK' (Async) -----
Successfully dispatched
----- END DDE Action: 'DB_STRUCTURE_INTEGRITY_CHECK' (SUCCESS, 0 csec) -----
Executing ASYNC actions
----- END DDE Actions Dump (total 0 csec) -----
FETCH #3065201888:c=11998,e=12032,p=5,cr=6,cu=0,mis=0,r=0,dep=2,og=4,plh=2853959010,tim=1377519352661044
STAT #3065201888 id=1 cnt=0 pid=0 pos=1 obj=18 op='TABLE ACCESS BY INDEX ROWID OBJ$ (cr=0 pr=0 pw=0 time=19 us)'
STAT #3065201888 id=2 cnt=1 pid=1 pos=1 obj=37 op='INDEX RANGE SCAN I_OBJ2 (cr=3 pr=3 pw=0 time=1001 us)'

通过观察每次的10046文件,发现总是在查询select /*+ rule */ name,file#, block#,status$,user#,undosqn,xactsqn, scnbas,scnwrp,DECODE(inst#,0,NULL,inst#),ts#,spare1 from undo$ where us#=:1并且总是us#=27号回滚段上过不去,通过使用bbed或者dul修改数据文件,让数据库启动时候不再扫描27号回滚段(主要是修改undo$.status$=1,block位置可以通过10046确定,也可以通过odu来确定,亦或者找个相同版本的库查看)

继续open数据库

SQL> startup pfile='/tmp/pfile' mount
ORACLE instance started.

Total System Global Area  175775744 bytes
Fixed Size                  1343668 bytes
Variable Size             117444428 bytes
Database Buffers           50331648 bytes
Redo Buffers                6656000 bytes
Database mounted.
SQL> alter database open;

Database altered.

删除有问题undo,重建新undo

SQL> drop tablespace undotbs1;
drop tablespace undotbs1
*
ERROR at line 1:
ORA-01561: failed to remove all objects in the tablespace specified


SQL> !oerr ora 01561
01561, 00000, "failed to remove all objects in the tablespace specified"
// *Cause: Failed to remove all objects when dropping a tablespace
// *Action: Retry the drop tablespace until all objects are dropped

SQL> drop tablespace undotbs1 including contents;
drop tablespace undotbs1 including contents
*
ERROR at line 1:
ORA-01561: failed to remove all objects in the tablespace specified


SQL> drop tablespace undotbs1 including contents and datafiles;
drop tablespace undotbs1 including contents and datafiles
*
ERROR at line 1:
ORA-01561: failed to remove all objects in the tablespace specified

-------------------------------------------------
因为前面使用了bbed/dul之类的工具,修改了undo$表,
导致undo$中的标记27号回滚段与seg$中不一致
解决方法使得修改undo$.status$为3或者2
-------------------------------------------------

SQL> update undo$ set status$=3 where us#=27;

1 row updated.

SQL> commit;

Commit complete.

SQL> drop tablespace undotbs1 ;
drop tablespace undotbs1
*
ERROR at line 1:
ORA-01561: failed to remove all objects in the tablespace specified


SQL> shutdown abort;
ORACLE instance shut down.
SQL> startup pfile='/tmp/pfile'
ORACLE instance started.

Total System Global Area  175775744 bytes
Fixed Size                  1343668 bytes
Variable Size             117444428 bytes
Database Buffers           50331648 bytes
Redo Buffers                6656000 bytes
Database mounted.
Database opened.
SQL> drop tablespace undotbs1 ;

Tablespace dropped.

SQL> create undo tablespace undotbs1 datafile '/u01/oracle/oradata/ora11g/undotbs1.dbf' size 10M;

Tablespace created.

直接修改基表,bbed/dul修改数据文件等操作都是危险级别非常高的操作,而且oracle not support,在没有十足把握之前,一定不要在生产环境中执行,如果数据库挂了需要类似方法恢复,也请一定保留现场,如果你搞不定能够还原现场
部分操作可以参考:通过bbed修改回滚段状态解决ORA-00704故障
